Уважаемые клиенты! Для расчета стоимости запчастей, а также стоимости их доставки до Москвы или других городов РФ просьба обращаться к нашим специалистам по телефону 7(495)508-19-79
| Артикул | Изображение | Описание | Совместимые модели | Компоненты в составе |
| 121488-2 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL 6003A, 6004 | Sea Tel 6003A, Sea Tel 6004 | 116903-11137 (Belt, Azimuth), 116903-10637 (Belt, Elevation), 116903-10437 (Belt, Cross Level), 116430-16525 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |

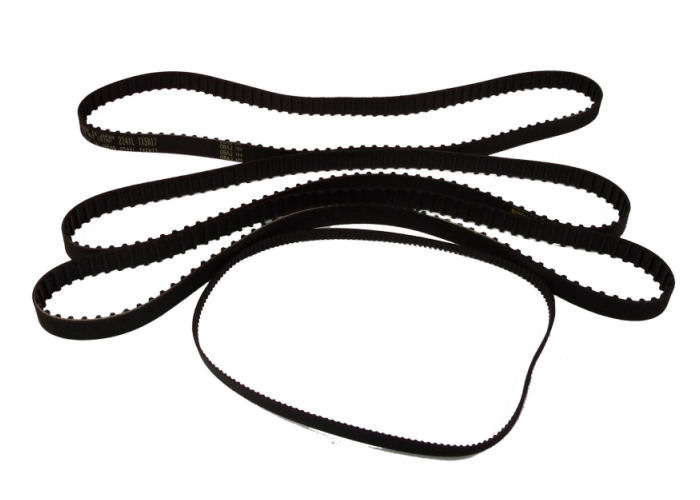

| 123553-1 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL XX04 | Sel Tel 3004, Sel Tel 4004, Sea Tel 5004, Sea Tel 5004UA | 131115-11137 (Belt, Azimuth), 116903-10437 (Belt, Elevation), 131115-11237 (Belt, Cross Level), 116430-18019 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 124020-3 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL 4003A | Sea Tel 4003A | 131115-11137 (Belt, Azimuth), 116903-10637 (Belt, Elevation), 116903-10937 (Belt, Cross Level), 116430-16525 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 124108-1 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL 6003A, 6004 | Sea Tel 6003A, Sea Tel 6004 | 124069-1 (Pol Motor), 117911-032 (Pulley), 114590-105 (Set Screw), 114593-102 (Screw), 114576-198 (Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 135282 (Procedure). |
| 124108-2 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL XX04, 3612, 4003A, 5012, XX06KU, XX09KU, XX10, 6012KU | Sea Tel 3004, Sea Tel 3612, Sea Tel 4003A, Sea Tel 4004, Sea Tel 4006, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4010, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5009, Sea Tel 5010, Sea Tel 6006 KU, Sea Tel 6009 KU, Sea Tel 6012 KU | 121880-1 (Pol Motor), 117319 (Pulley), 114590-824 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135292 (Procedure). |
| 124109-1 |  |
REPLACEMENT POL POT KIT, SEA TEL 6003A, 6004, XX97/A KU ONLY, TVRO | Sea Tel 6003A, Sea Tel 6004, Sea Tel 9497, Sea Tel 9497A | 115425-3 (Pol Pot, 3 Turn), 111838 (Pulley), 114590-142 (Set Screw), 115719 (Bracket), 119967 (Hex Nut), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135301 (Procedure). |

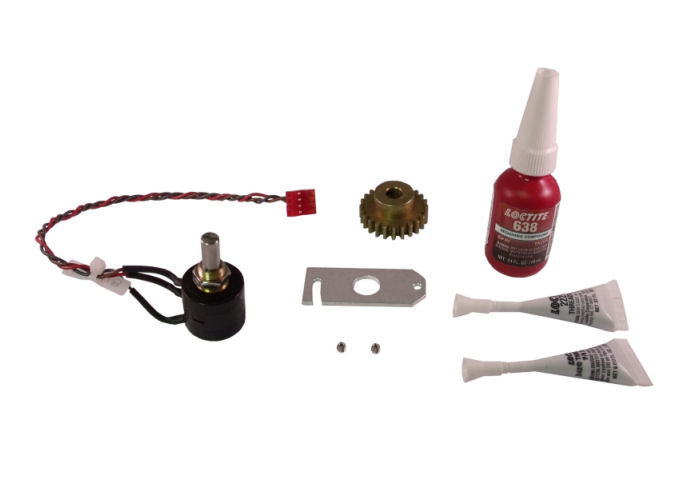

| 124109-2 |  |
REPLACEMENT POL POT KIT, SEA TEL 3011, 3612, XX04, 4003A, XX06, XX09KU, XX10, 5012, 6012KU | Sea Tel 2406, Sea Tel 3004, Sea Tel 3011, Sea Tel 3612, Sea Tel 4003A, Sea Tel 4004, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5009, Sea Tel 5010, Sea Tel 6006 KU, Sea Tel 6009 KU, Sea Tel 6012 KU, Sea Tel 9711QOR | 115425-2 (Pol Pot, 3 Turn), 117139 (Pulley), 114590-824 (Set Screw), 116433 (Mounting Plate), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135280 (Procedure). |
| 124110-1 |  |
REPLACEMENT ELEVATION MOTOR / CROSS LEVEL MOTOR KIT, SEA TEL 2406, 4003A, CROSS LEVEL MOTOR KIT, SEA TEL 6003A/6004 | Sea Tel 2406, Sea Tel 4003A, Sea Tel 6003A, Sea Tel 6004 | 116139-2 (EL/CL Motor, 9-Pin), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135303 (Procedure). |
| 124110-2 |  |
REPLACEMENT ELEVATION MOTOR / CROSS LEVEL MOTOR KIT, SEA TEL XX04, 4006-4006RZ, EL MOTOR KIT, SEA TEL 6003A/6004 | Sea Tel 3004, Sea Tel 4004, Sea Tel 4006, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6003A, Sea Tel 6004 | 116139-3 (EL/CL Motor, 9-Pin), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135296 (Procedure). |
| 124112-3 |  |
REPLACEMENT AZIMUTH MOTOR KIT, W/ENCODER, SEA TEL XX04, 6003A, 6004, XX06, 4003A | Sea Tel 2406, Sea Tel 3004, Sea Tel 4004, Sea Tel 4003A, Sea Tel 4006, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6003A, Sea Tel 6004, Sea Tel 6006C, Sea Tel 6006KU | 121951 (AZ Motor, W/Encoder), 115467-2 (Pulley), 114590-188 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135261 (Procedure). |

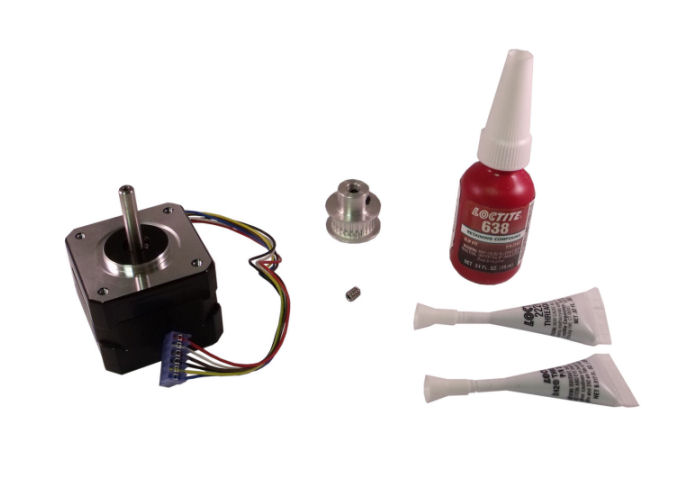

| 124115-2 |  |
REPLACEMENT LEVEL CAGE MOTOR KIT, SEA TEL XX04, 6003A, 6004 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6003A, Sea Tel 6004 | 116059-2 (LC Motor), 122264 (Pulley), 122168 (Set Screw x2), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135290 (Procedure). |
| 125096-1 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL 4006-4006RZ | Sea Tel 4006 | 131115-11137 (Belt, Azimuth), 116903-10437 (Belt, Elevation), 131115-11137 (Belt, Cross Level), 116430-16525 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 125223-1 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL COASTAL | Sea Tel C18, Sea Tel C24, Sea Tel C30, Sea Tel C20 | 116903-14537 (Belt, Azimuth), 116903-09637 (Belt, Elevation), 116430-14025 (Belt, Polang), 116430-14012 (Belt, Pol Pot), 117319-4 (Loctite 242), 136431 (Procedure). |
| 125224-1 |  |
REPLACEMENT ELEVATION & AZIMUTH MOTOR KIT, NO/ENC, SEA TEL COASTAL, EL C18, AZ C18, C20, C24, C30 | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 116778 (Motor), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-21 (Loctite 222), 117319-27 (Loctite 638), 117319-4 (Loctite 242), 135397 (Procedure). |
| 125225-1 |  |
REPLACEMENT POL POT KIT, SEA TEL COASTAL | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 124902-1 (Pol Pot W/Harness), 116420-30 (Pulley), 114590-188 (Set Screw), 117319-21 (Loctite 222), 117319-27 (Loctite 638), 117319-4 (Loctite 242), 135554 (Procedure). |
| 125226-1 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL COASTAL, USAT | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30, Sea Tel USAT24, Sea Tel USAT30 | 124700 (Motor), 116420-20 (Pulley), 119985 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 135555 (Coastal Procedure), 136481 (USAT Procedure). |
| 125228-1 |  |
REPLACEMENT ELEVATION MOTOR KIT, HI-TORQUE, W/ENC, SEA TEL COASTAL | Sea Tel C20, Sea Tel C24, Sea Tel C30 | 125519 (Motor, W/Encoder), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-21 (Loctite 222), 117319-27 (Loctite 638), 117319-4 (Loctite 242), 135396 (Procedure). |
| 125609 | BUC CONVERSION KIT, 8W, SEA TEL 4003-7 TO -23 | Sea Tel 4003 | 122737 (SSPA Support Plate), 118328-3 (Round Standoff, 1/4-20 x 0.5), 114592-542 (Fully Threaded Stud, 1/4-20 x 1), 114592-544 (Fully Threaded Stud, 1/4-20 x 1-1/4), 116700-6 (Cable RG223, 6 FT, N-F), 11079-7 (Cable SMA-N, 7 FT), 124386-084 (Cable SMA-SMA, 84 IN), 121711 (Balance Weight Kit) & Hardware. | |
| 126058 |  |
RETROFIT PCU KIT, SEA TEL 98 TO COASTAL UPGRADE | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 125517-4 (PCU Assembly, 98 Upgrade), 126003 (Bracket, PCU Field Upgrade), Weights, Hardware, 117319-4 (Loctite 242), 117319-30 (Loctite 2760), 126058 (Drawing) 136112 (Procedure). |
| 126493 | X-POL TO CO-POL CONVERSION KIT, SEA TEL 4003A | Sea Tel 4003A | 122851 (KU-Band Diplexer Assembly), 119822-2 (Waveguide 180 Degree, H-Bend), 110496-9 (Waveguide Adapter, WR-75 - SMA) & Hardware. | |
| 126748 |  |
RETROFIT KIT, DAC-2200 W/COSEL POWER SUPPLY | DAC | 125343-6 (Cosel Power Supply 150W, 24V), 126563-1 (Harness), 126569 (Clip, Power Supply), 126568 (Bracket), Hardware, 126603 (Procedure). |
| 127009-1 | X-POL TO CO-POL UPGRADE KIT, 4W, SEA TEL 4006 | Sea Tel 4006 | 114281 (Waveguide, 90 Degree 3 IN), 114280-4 (Waveguide, 90 Degree H-Bend, 1.50 IN X 2.50 IN), 120163-2 (Waveguide, Flexible 1.75 IN), 125157-1 (Diplexer, DPX75K-C02-A), 117164-80BLK (Cable RG-179, F - F, 80 IN) & Hardware. | |
| 127425-1 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL 2406 | Sea Tel 2406 | 131115-11137 (Belt, Azimuth), 116903-12937 (Belt, Elevation), 116903-11037 (Belt, Cross Level), 116430-16525 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 127676-1 | X-POL TO CO-POL UPGRADE KIT, 8W, -1 LNB, SEA TEL 6006 | Sea Tel 6006 C, Sea Tel 6006 KU | 122188-1 (LNB 11.70 - 12.20GHz, F-Type), 127715-1 (WR-75 CO-POL Assembly, -1 LNB), 125157-1 (Diplexer, DPX75K-C02-A), 119318-3 (Waveguide, 90 Degree, H-Bend, 1.5 X 1.0), 114280-6 (Waveguide, 90 Degree, H-Bend, 1.50 X 3.00), 117164-60BLK (Cable, RG-179, 60 Inch, F-F), 121711 (Balance Weight Kit) & Hardware. | |
| 127676-2 | X-POL TO CO-POL UPGRADE KIT, 8W, -2 LNB, SEA TEL 6006 | Sea Tel 6006 C, Sea Tel 6006 KU | 122188-2 (LNB 12.25 - 12.75GHz, F-Type), 127715-2 (WR-75 CO-POL Assembly, -2 LNB), 125157-1 (Diplexer, DPX75K-C02-A), 119318-3 (Waveguide, 90 Degree, H-Bend, 1.5 X 1.0), 114280-6 (Waveguide, 90 Degree, H-Bend, 1.50 X 3.00), 117164-60BLK (Cable, RG-179, 60 Inch, F-F), 121711 (Balance Weight Kit) & Hardware. | |
| 127676-3 | X-POL TO CO-POL UPGRADE KIT, 8W, -3 LNB, SEA TEL 6006 | Sea Tel 6006 C, Sea Tel 6006 KU | 122188-3 (LNB 10.95 - 11.70GHz, F-Type), 127715-3 (WR-75 CO-POL Assembly, -3 LNB), 125157-1 (Diplexer, DPX75K-C02-A), 119318-3 (Waveguide, 90 Degree, H-Bend, 1.5 X 1.0), 114280-6 (Waveguide, 90 Degree, H-Bend, 1.50 X 3.00), 117164-60BLK (Cable, RG-179, 60 Inch, F-F), 121711 (Balance Weight Kit) & Hardware. | |
| 127818-1 |  |
RETROFIT SORBOTHANE UPGRADE KIT, 3 POINT, SILICONE RUBBER | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004 | 127779-1 (Isolator), 127779-3 (Isolator), 115266 (Rod End Mod), 122343-4 (Sleeve), (Hardware), 117319-30 (Loctite 2760), 129149 (Procedure). |
| 128545-1 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL XX97B, XX07, XX00B | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 14400B, Sea Tel 14600B | 123907-17269 (Belt, Elevation), 123907-14569 (Belt, Cross level), 116430-17525 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 129976 |  |
REPLACEMENT FLOW CONTROL VALVE KIT, SEA TEL XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 130016 (Valve Check, Flow Control), 130044-412 (Bushing, Reducing Brass), 130043-12 (PTFE Tape), 135270 (Procedure). |
| 129977 |  |
REPLACEMENT PNEUMATIC DAMPENER KIT, SEA TEL XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 129249 (Damper, 3" Air Cylinder), 114589-192 (Screw), 114589-395 (Screw), 114581-290 (Washer), 114582-135 (Nut), 117319-30 (Loctite 2760), 135274 (Procedure). |
| 129978-1 |  |
REPLACEMENT RUBBER BUMPER KIT, SEA TEL 3612, 4009, 4012 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012 | 115927-14 (Bumper, Rubber Recessed 1-1/2 OC 3/4"), 129814-640 (Standoff, Hex), 119973-143 (Screw), 14625-109 (Washer), 117319-30 (Loctite 2760), 121730 (Loctite Procedure). |
| 129978-2 |  |
REPLACEMENT RUBBER BUMPER KIT, SEA TEL 5009, 5012, 6009, 6012, ST60 | Sea Tel 5009, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 115927-14 (Bumper, Rubber Recessed 1-1/2 OC 3/4"), 129814-625 (Standoff, Hex), 119973-143 (Screw), 14625-109 (Washer), 117319-30 (Loctite 2760), 121730 (Loctite Procedure). |
| 129979 |  |
LUBRICATION KIT, SEA TEL XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 129987 (Grease Gun), 129988 (Cartridge, Grease, Lithium, 14.1 OZ). |
| 129980 |  |
REPLACEMENT WIRE ROPE ISOLATOR KIT, SEA TEL 6006RZA, 6009, 6012, ST60 | Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 127837-1 (Wire Rope Isolator, 3300/1945 LB-120 IN), 114586-536 (Screw), 114586-556 (Screw), 114581-029 (Washer), 114580-029 (Washer), 119327 (Bar Rubber Composite), 117319-30 (Loctite 2760), 135268 (Procedure). |
| 129980-2 |  |
REPLACEMENT WIRE ROPE ISOLATOR KIT, SEA TEL 3011, 3612, 4006RZA, 4010, 4009, 4012, 5004, 5009, 5010, 5012 | Sea Tel 3011, Sea Tel 3612, Sea Tel 4006, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4010, Sea Tel 4012, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5009, Sea Tel 5010, Sea Tel 5012 | 115132-1 (Wire Rope Isolator 1270/700 LB-120 IN), 114586-536 (Screw), 114586-556 (Screw), 114581-029 (Washer), 114580-029 (Washer), 119327 (Bar Rubber Composite), 117319 -30 (Loctite 2760), 135268 (Procedure). |
| 130232 | RZA PEDESTAL UPGRADE KIT, SEA TEL 6006 | Sea Tel 6006 C, Sea Tel 6006 KU | 130447-2 (Base Spindle Assembly), 127236-1 (Vertical Isolation Assembly), 130448-1 (Cross Level Assembly), 130449-1 (Level Beam), 131061-1 (Azimuth Post Brace) & Hardware. | |

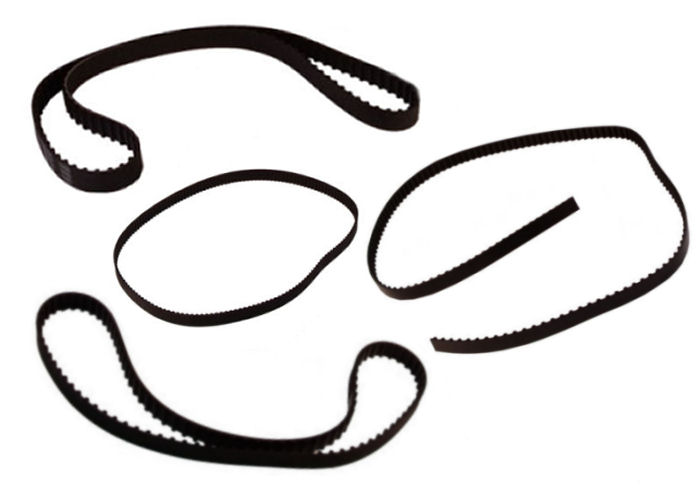

| 130470-1 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL 4006RZA, WITH IDLERS | Sea Tel 4006 | 131115-11137 (Belt, Azimuth), 123907-147371 (Belt, Elevation), 123907-13537 (Belt, Cross Level), 116430-16525 (LC Belt), 117319-4 (Loctite 242), 135277 (Procedure). |
| 130775 |  |
REPLACEMENT ELEVATION MOTOR KIT, NO BRAKES, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 128209-2 (Motor W/Encoder), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-21 (Loctite 222), 117319-27 (Loctite 638), 117319-4 (Loctite 242), 135930 (Procedure). |
| 130776 |  |
REPLACEMENT AZIMUTH MOTOR KIT, NO BRAKES, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 121951-2 (Motor Size 23, BLDC, 2 Stack W/Encoder, 20 IN), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-21 (Loctite 222), 117319-27 (Loctite 638), 117319-4 (Loctite 242), 135931 (Procedure). |
| 132089 |  |
UPGRADE KIT, KEVLAR BELT AND IDLER, SEA TEL XX06RZA | Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU | 123907-147371 (Belt-147 Grooves, 3/8 Wider, Kevlar), 123907-13537 (Belt, 135 Grooves, 3/8 Wide, Kevlar), Idler Assembly & Hardware, 132084 (Procedure). |
| 132090 |  |
UPGRADE KIT, KEVLAR BELT AND IDLER, SEA TEL XX09 | Sea Tel 4009, Sea Tel 5009, Sea Tel 6009C, Sea Tel 6009KU | 123907-157371 (Belt, 157 Grooves, 3/8 Wide, Kevlar), 123907-13537 (Belt, 135 Grooves, 3/8 Wide, Kevlar), Idler Assembly & Hardware, 132084 (Procedure). |
| 132196-1 |  |
UPGRADE KIT, ELECTRONICS SEA TEL XX09, MK1 - MK2, KU-BAND | Sea Tel 4009, Sea Tel 5009, Sea Tel 6009KU | 131057-1 (PCU Assembly, XX09 MK2), 131227-1 (MDE Assembly), 131381-1 (Navman GPS), Harnesses, Coax, Hardware, 117319-4 (Loctite 242), 132622 (Procedure). |
| 132410 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL XX10 | Sea Tel 4010, Sea Tel 5010 | 131115-11137 (Belt, Azimuth), 116903-10437 (Belt, Elevation), 116903-11237 (Belt, Cross Level), 117319-4 (Loctite 242), 135262 (Procedure). |
| 132496-1 |  |
REPLACEMENT LNB KIT, BRAINWAVE TO INVERTO, SEA TEL COASTAL | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 132463-1 (LNBF, Quad, KU, Inverto, Modified), 132507 (Balance Weight Kit, Quad LNB, Coastal), 117319-30 (Loctite 2760), 136481 (Procedure). |
| 132497-1 |  |
REPLACEMENT LNB KIT, BRAINWAVE TO INVERTO, SEA TEL XX04, 6003A, 6004 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 6003A, Sea Tel 6004 | 132463-1 (LNB, Inverto, Quad Linear), 121711 (Balance Weight Kit), 117319-21 (Loctite 222), 117319-30 (Loctite 2760), 132506-2 (Replacement Procedure), 135294 (Procedure). |
| 132498-1 |  |
REPLACEMENT LNB KIT, BRAINWAVE TO INVERTO, SEA TEL XX97, XX97A, XX97B, XXX00, XXX00B | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B | 132463-1 (LNB, Inverto, Quad Linear), 121711 (Balance Weight Kit), 132506-3 (Replacement Procedure), 135309 (Procedure). |
| 133091-1 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL ST24 | Sea Tel ST24 | 116903-12937 (Belt, Elevation), 116430-16525 (Belt, Polang), 117319-4 (Loctite 242), 136431 (Procedure). |
| 134877-1 |  |
REPLACEMENT GPS ANTENNA KIT, BNC, SEA TEL XX04, XX06 4003A, XX97, XX97A, XX00 | Sea Tel 3004, Sea Tel 4003A, Sea Tel 4004, Sea Tel 4006, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6003A, Sea Tel 6004, Sea Tel 6006C, Sea Tel 6006KU, Sea Tel 8897, Sea Tel 8897A, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9797, Sea Tel 9797A, Sea Tel 14497, Sea Tel 14400, Sea Tel 14600 | 121966-2 (GPS Antenna, Furuno, 21"), 124077-4 (3M Adhesive), 135264 (Procedure). |
| 134877-2 |  |
REPLACEMENT GPS ANTENNA KIT, BNC, SEA TEL XX97B, XXX00B, XX07 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 14400B, Sea Tel 14600B | 121966-6 (GPS Antenna, Furuno, 32"), 124077-4 (3M Adhesive), 135264 (Procedure). |
| 134877-3 |  |
REPLACEMENT GPS ANTENNA KIT, BNC, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 121966-5 (GPS Antenna, Reterminated, 42.0 L), 124077-4 (Tape, 3M VHB #4952, Synthetic Adhesive), 135264 (Procedure). |
| 134877-4 |  |
REPLACEMENT GPS ANTENNA KIT, BNC, SEA TEL COASTAL | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 121966-4 (GPS Antenna, Reterminated, 72.0 L), 124077-4 (Tape, 3M VHB #4952, Synthetic Adhesive), 136480 (Procedure). |
| 134877-5 |  |
REPLACEMENT GPS ANTENNA KIT, BNC, SEA TEL 2406 | Sea Tel 2406 | 121966 (GPS Antenna, Furuno, 90"), 124077-4 (3M Adhesive), 135264 (Procedure). |
| 134882 |  |
REPLACEMENT GPS ANTENNA KIT, RJ-12, SEA TEL ST24, XX09 MK2, XX10, XX12, XX11, XX11QOR, ST60, ST88/94/144 | 3011, 3612, 4009, 4009 MK3, 4010, 4012, 5009, 5010, 5012, 6009C, 6009KU, 6012C, 6012KU, ST60, 9711, 9711QOR, ST24, ST88, ST94, ST144 | 131381-1 (GPS Antenna, Serial), 124077-5 (3M Adhesive), 135288 (Procedure). |
| 134918 |  |
REPLACEMENT POL POT KIT, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 128915-1 (PolPot, W/Harness), 116420-40 (Pulley), 114590-188 (Set Screw), 117319-21 (Loctite 222), 117319-27 (Loctite 638), 117319-4 (Loctite 242), 135929 (Procedure). |
| 134919 |  |
REPLACEMENT POL POT KIT, SEA TEL 6006C, 6009C, 6012C, ST60, 9597B, 9507 | Sea Tel 6006C, Sea Tel 6009C, Sea Tel 6012C, Sea Tel ST60, Sea Tel 9597B | 115425-5 (Pol Pot, 10 Turn), 125359-2 (Pulley), 114590-188 (Set Screw), 123067 (Polang Plate), 126264-13 (Star Washer), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 135302 (Procedure). |
| 134924 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL 2406 | Sea Tel 2406 | 126986-1 (Pol Motor), 127047-1 (Pulley), 114590-824 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135325 (Procedure). |
| 134925 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL XX97, XX97A, XX97B (NOT 9597B), 14400, 14400B, ST88/94/144 | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 121880-1 (Pol Motor), 117549-24 (Pulley, 24T, VSAT), 1164634 (Pulley, 12T, TVRO), 114590-144 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135326 (Procedure). |
| 134926 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL 6006C, 6009C, 6012C, ST60, 9597B, 9507 | Sea Tel 6006C, Sea Tel 6009C, Sea Tel 6012C, Sea Tel ST60, Sea Tel 9597B | 121880-2 (Pol Motor), 108944-3 (Pulley), 114590-188 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135299 (Procedure). |
| 134927 |  |
REPLACEMENT LEVEL CAGE MOTOR KIT, SEA TEL 2406 | Sea Tel 2406 | 124228-1 (LC Motor Assembly - 116059-4), 117319-4 (Loctite 242), 135313 (Procedure). |
| 134928 |  |
REPLACEMENT LEVEL CAGE MOTOR KIT, SEA TEL XX06, 4003A | Sea Tel 4003A, Sea Tel 4006, Sea Tel 6006 C, Sea Tel 6006 KU | 124273-1 (LC Motor Assembly - 116059-1), 117319-4 (Loctite 242), 135314 (Procedure). |
| 134929 |  |
REPLACEMENT ELEVATION MOTOR / CROSS LEVEL MOTOR KIT, BRAKED, SEA TEL XX06RZA | Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU | 125644-2 (EL/CL Motor, 9-Pin, W/Brake), 115467-2 (Pulley), 114590-188 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135316 (Procedure). |
| 134930 |  |
REPLACEMENT ELEVATION MOTOR / CROSS LEVEL MOTOR KIT, BRAKED, SEA TEL 4010W-53, 6006 (PRE RZA), XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4010, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 125644-1 (EL/CL Motor, 15-Pin, W/Brake), 115467-2 (Pulley), 114590-188 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Procedure), 135297 (Procedure). |

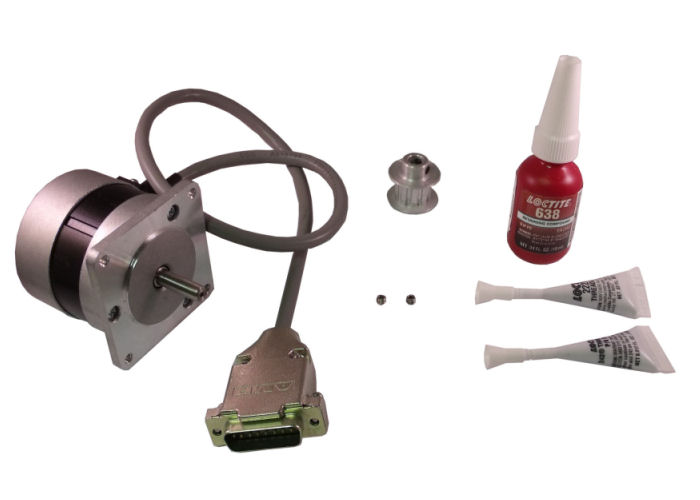

| 134931 |  |
REPLACEMENT ELEVATION MOTOR / CROSS LEVEL MOTOR KIT, SEA TEL 3011, XX10 | Sea Tel 3011, Sea Tel 4010, Sea Tel 5010 | 116139-1 (EL/CL Motor, 15 Pin), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Procedure), 135298 (Procedure). |
| 134932 |  |
REPLACEMENT ELEVATION MOTOR KIT, BRAKED, SEA TEL XX07, XX97B, XXX00B, 9711, 9711QOR, ST88/94/144 | 8897B, 9497B, 9597B, 9707, 9797B, 9711, 9711 QOR, 14400B, 14600B, ST88, ST94, ST144 | 125974-1 (EL Motor, W/Brake), 127825-1 (Pulley), 115352-473 (Dowel Pin), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Procedure), 135317 (Procedure). |
| 134933 |  |
REPLACEMENT ELEVATION / CROSS LEVEL / AZIMUTH MOTOR KIT, SEA TEL XX97, XX97A, XXX00 | Sea Tel 8897, Sea Tel 8897A, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9797, Sea Tel 9797A, Sea Tel 14497, Sea Tel 14400, Sea Tel 14600 | 116047-1 (EL/CL/AZ Motor), 116577 (EL/CL Pulley), 116311 (AZ Pulley), 131507-04020 (Spring Pin Coiled, Heavy Duty), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135318 (Procedure |
| 134938 |  |
REPLACEMENT AZIMUTH MOTOR KIT, W/ENCODER, SEA TEL XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 129358-1 (AZ Motor Assembly), 117319-4 (Loctite 242), 135279 (Procedure). |
| 134939 |  |
REPLACEMENT AZIMUTH MOTOR KIT, W/ENCODER, SEA TEL XX10 | Sea Tel 4010, Sea Tel 5010 | 121951-2 (AZ Motor, W/Encoder), 115467-2 (Pulley), 114590-188 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135295 (Procedure). |
| 134940 |  |
REPLACEMENT AZIMUTH MOTOR KIT, W/ENCODER, SEA TEL XX97B, XXX00B, XX07, 9711/QOR, ST88/94/144 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 14400B, Sea Tel 14600B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 125081-1 (AZ Motor Assembly, W/Encoder), 124039-1 (AZ Motor W/Encoder), 117319-4 (Loctite 242), 135315 (Procedure). |
| 134941 |  |
REPLACEMENT AZIMUTH ENCODER KIT, SEA TEL XX97, XX97A, XXX00 | Sea Tel 8897, Sea Tel 8897A, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9797, Sea Tel 9797A, Sea Tel 14497, Sea Tel 14400, Sea Tel 14600 | 116053 (AZ Encoder, W/Wiring), 114106-12 (Pulley), 114590-190 (Set Screw), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 135312 (Procedure). |
| 135336 |  |
REPLACEMENT PCU KIT, SEA TEL XX04 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004 | 122203 (PCU Assembly, XX04), 117319-4 (Loctite 242), 135278 (Procedure). |
| 135337 |  |
REPLACEMENT PCU KIT, SEA TEL 4003A, 6003A, 6004 | Sea Tel 4003A, Sea Tel 6003A, Sea Tel 6004 | 121185-2 (PCU Assembly, 6003A, 6004, 4003A), 117319-4 (Loctite 242), 124077-4 (3M Synthetic Adhesive, 2" long), 135300 (Procedure). |
| 135338 |  |
REPLACEMENT PCU MOTHERBOARD PCB KIT, SEA TEL XX09 MK2, XX10, XX11, ST60, ST88/ST94/ST144 | Sea Tel 3011, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel ST60, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 130432-1 (PCU PCB, XX09), 117319-4 (Loctite 242), 135275 (Procedure). |
| 135339 |  |
REPLACEMENT POL AUX RELAY KIT, SEA TEL XX04 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA | 122202 (Pol Aux Relay, Assembly), 117319-30 (Loctite 2760), 117319-4 (Loctite 242), 135267 (Procedure). |
| 135340 |  |
REPLACEMENT POL AUX RELAY KIT, SEA TEL 6003A, 6004 | Sea Tel 6003A, Sea Tel 6004 | 118017-2 (Pol Aux Relay PCB), 117319-4 (Loctite 242), 135291 (Procedure). |
| 135341 |  |
REPLACEMENT POWER SUPPLY KIT, COSEL, 150W 24V | Sea Tel 2406, Sea Tel 3011, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel ST60, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144, DAC | 125343-6 (Power Supply), 117319-4 (Loctite 242), 135263 (Procedure). |
| 135341-1 |  |
REPLACEMENT POWER SUPPLY KIT, MEANWELL, 150W 24V | Sea Tel 3612, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5012, Sea Tel 6012C, Sea Tel 6012KU | 133562-6 (Power Supply, 150W Mean Well, 24VDC), 117319-4 (Loctite 242), 136833 (Procedure). |
| 135342 |  |
REPLACEMENT MOTION PLATFORM PCB KIT, SEA TEL XX09 MK2, XX10, XX11, XX12, ST60, ST88/94/144 | Sea Tel 3011, Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4010, Sea Tel 4012, Sea Tel 5009, Sea Tel 5010, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 135141-1 (Motion Platform PCB G3), 117319-4 (Loctite 242), 135287 (Procedure). |
| 135343 |  |
REPLACEMENT LEVEL CAGE KIT, BASE EXIT, SEA TEL XX04, SEA TEL XX06 | Sea Tel 3004, Sea Tel 4004, Sea Tel 4006, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6006C, Sea Tel 6006KU | 122937-1 (Level Cage, Base Exit), 135266 (Procedure). |
| 135344 |  |
REPLACEMENT LEVEL CAGE KIT, SIDE EXIT, SEA TEL XX03A, 6004, XX97/A/B, XX00/B, XX07 | Sea Tel 4003A, Sea Tel 6003A, Sea Tel 6004, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9507, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 4497, Sea Tel 14400, Sea Tel 14400B, Sea Tel 14600, Sea Tel 14600B | 122208-1 (Level Cage, Side Exit), 135265 (Procedure). |
| 135345 |  |
REPLACEMENT COAX SWITCH KIT, SEA TEL XX06RZA, XX09 MK1 | Sea Tel 4006, Sea Tel 4009, Sea Tel 5009, Sea Tel 6006KU, Sea Tel 6009KU | 128010-1 (Coax Switch Assembly), 117319-4 (Loctite 242), 135283 (Procedure). |

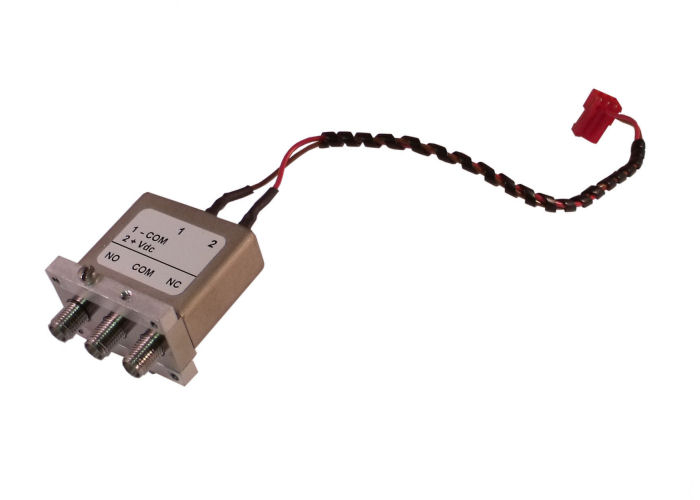

| 135346 |  |
REPLACEMENT COAX SWITCH KIT, SEA TEL 3011, XX09 MK2, XX10, 9711QOR | Sea Tel 3011, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6009C, Sea Tel 6009KU, Sea Tel 9711QOR | 131533-2 (Coax Switch), 117319-4 (Loctite 242), 135284 (Procedure). |
| 135347 |  |
REPLACEMENT MDE KIT, SEA TEL XX09 MK2, XX10 (NOT 4010W-53), XX11, XX12, ST60, ST88/94/144 | Sea Tel 3011, Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4010, Sea Tel 4012, Sea Tel 5009, Sea Tel 5010, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel ST60, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 131227-1 (MDE Assembly), 117319-4 (Loctite 242), 135271 (Procedure). |
| 135348 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 70KHZ | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6004 | 122363-1 (Modem Assembly, 70 KHz, ADE), 117319-4 (Loctite 242), 135269 (Procedure). |
| 135349 |  |
REPLACEMENT MODEM KIT, PEDESTAL PCB, 400MHZ, 3 CH RS 232 | Sea Tel 3011, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel ST60, Sea Tel 9711, Sea Tel 9711QOR | 129099-1 (PCB Assembly, RF Modem, 400 MHz, 3 CH, ADE, RS 232), 117319-4 (Loctite 242), 135273 (Procedure). |
| 135350-1 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 400MHZ, 3 CH RS 232 | Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 14600B | 129613-1 (Modem Assembly, 400MHz FSK, 3 CH, ADE, RS 232), 117319-4 (Loctite 242), 135273 (Procedure). |
| 135350-2 |  |
REPLACEMENT MODEM KIT, BASE, 400MHZ, 3CH RS 232 | Sea Tel 3011, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel ST60, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 14600B | 129613-2 (Modem Assembly, 400MHz FSK, 3 CH, BDE, RS 232), 117319-4 (Loctite 242), 135273 (Procedure). |
| 135351 |  |
REPLACEMENT ELEVATION BELT KIT, FOR IDLER, SEA TEL XX06RZA | Sea Tel 4006, Sea Tel 6006 C, Sea Tel 6006 KU | 123907-147371 (Belt, Elevation), 117319-4 (Loctite 242), 135277 (Procedure). |
| 135352 |  |
REPLACEMENT CROSS LEVEL BELT KIT, FOR IDLER, SEA TEL XX06RZA, XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4006, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 123907-13537 (Belt, Cross Level), 117319-4 (Loctite 242), 135276 (Procedure). |
| 135353 |  |
REPLACEMENT AZIMUTH DRIVE CHAIN KIT, SEA TEL XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 108305-10 (Drive Chain, Azimuth), 135272 (Procedure). |
| 135354 |  |
REPLACEMENT ELEVATION BELT KIT, 3011, XX04, 4006-4006RZ, XX10, CROSS LEVEL BELT KIT, SEA TEL 6003A, 6004 | Sea Tel 3004, Sea Tel 3011, Sea Tel 4004, Sea Tel 4006, Sea Tel 4010, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5010, Sea Tel 6003A, Sea Tel 6004 | 116903-10437 (Belt, Elevation: 3011, XX04, 4006-4006RZ, XX10, Cross Level: 6003A, 6004), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135355 |  |
REPLACEMENT ELEVATION BELT KIT, SEA TEL 4003A, 6003A, 6004 | Sea Tel 4003A, Sea Tel 6003A, Sea Tel 6004 | 116903-10637 (Belt, Elevation), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135356 |  |
REPLACEMENT CROSS LEVEL BELT KIT, SEA TEL 3011, XX04, XX10 | Sea Tel 3004, Sea Tel 3011, Sea Tel 4004, Sea Tel 4010, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5010 | 131115-11237 (Belt, Cross Level), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135357 |  |
REPLACEMENT AZIMUTH BELT KIT, SEA TEL XX04, 6003A, 6004, XX06, 4003A, XX10, CROSS LEVEL BELT KIT, 4006-4006RZ, POL BELT KIT, 6006C, 6009C, 6012C, ST60, 9507, 9597B | Sea Tel 2406, Sea Tel 3004, Sea Tel 4003A, Sea Tel 4004, Sea Tel 4006, Sea Tel 4010, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5010, Sea Tel 6003A, Sea Tel 6004, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6012 C, Sea Tel ST60, Sea Tel 9597B | 131115-11137 (Belt, Azimuth), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135358 |  |
REPLACEMENT LEVEL CAGE BELT KIT, SEA TEL XX06, 4003A, 6003A, 6004, POL BELT KIT, ST24 | Sea Tel 2406, Sea Tel 4003A, Sea Tel 4006, Sea Tel 6003A, Sea Tel 6004, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel ST24 | 116430-16525 (Belt, Level Cage), 135262 (Procedure). |
| 135359 |  |
REPLACEMENT LEVEL CAGE BELT KIT, SEA TEL XX04 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA | 116430-18019 (Belt, Level Cage), 135262 (Procedure). |
| 135360 |  |
REPLACEMENT LNB KIT, INVERTO, LINEAR, QUAD KU | Sea Tel ST24, Sea Tel C18, Sea Tel C24, Sea Tel C20, Sea Tel C24, Sea Tel C30, Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6003A, Sea Tel 6004, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 132463-1 (LNB, Inverto, Quad Linear), 117319-21 (Loctite 222), 135294 (Procedure). |
| 135361 |  |
REPLACEMENT LNB KIT, DUAL DBS | Sea Tel ST24, Sea Tel C18, Sea Tel C24, Sea Tel C20, Sea Tel C30, Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6003A, Sea Tel 6004, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 127444-1 (LNB, Dual DBS), 117319-21 (Loctite 222), 135294 (Procedure). |
| 135362 |  |
REPLACEMENT LNB KIT, DUAL DLA | Sea Tel ST24, Sea Tel C18, Sea Tel 6003A, Sea Tel 6004, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 115075-2 (LNB, Dual DLA), 117319-21 (Loctite 222), 135294 (Procedure). |
| 135363 |  |
REPLACEMENT LNB KIT, DUAL DLA, WITH SPACER | Sea Tel C20, Sea Tel C24, Sea Tel C30, Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA | 123559-2 (LNB, Dual DLA, W/Spacer), 117319-21 (Loctite 222), 135294 (Procedure). |
| 135364 |  |
REPLACEMENT LNB KIT, AUSSAT, KU ACER | Sea Tel ST24, Sea Tel C18, Sea Tel C24, Sea Tel C20, Sea Tel C24, Sea Tel C30, Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6003A, Sea Tel 6004, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 131492-1 (LNB, Aussat), 117319-21 (Loctite 222), 135294 (Procedure). |
| 135365 |  |
REPLACEMENT LNB KIT, SWM QUAD LO, KU F-TYPE | Sea Tel 2406, Sea Tel 3011, Sea Tel 4006, Sea Tel 6006KU, Sea Tel 4009, Sea Tel 5009, Sea Tel 6009KU, Sea Tel 4010, Sea Tel 5010, Sea Tel 9797B, Sea Tel 9711 QOR, Sea Tel USAT24, Sea Tel USAT30 | 127386-2 (LNB, SM Quad LO, KU-Band, VSAT), 135294 (Procedure). |
| 135366 |  |
REPLACEMENT L-BAND DVB RECEIVER KIT | DAC, Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6004, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 122307-1 (DVB Receiver, L-Band), 117319-4 (Loctite 242), 135294 (Procedure). |
| 135367 |  |
REPLACEMENT L-BAND SCPC RECEIVER KIT | DAC, Sea Tel 2406, Sea Tel USAT24, Sea Tel USAT30, Sea Tel 3011, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6011, Sea Tel ST60, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14600, Sea Tel 14600B | 127166-1 (SCPC Receiver, L-Band), 117319-4 (Loctite 242), 135294 (Procedure). |
| 135368-1 |  |
REPLACEMENT DAC-2202 KIT, DVB, F-CONNECTOR | DAC, Sea Tel 3004, Sel Tel 4004, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 6004 | 125411-1 (DAC-2202 Assembly, DVB, Coax), 135289 (Procedure). |
| 135368-2 |  |
REPLACEMENT DAC-2202 KIT, DVB, 9-PIN | DAC, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 125411-2 (DAC-2202 Assembly, DVB, 9-Pin), 135289 (Procedure). |
| 135368-3 |  |
REPLACEMENT DAC-2202 KIT, SCPC, 9-PIN | DAC, Sea Tel 2406, Sea Tel 3011, Sea Tel 4003A, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6011, Sea Tel ST60, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14600, Sea Tel 14600B | 125411-3 (DAC-2202 Assembly, SCPC, 9-Pin), 135289 (Procedure). |
| 135370 |  |
REPLACEMENT DAC-2202, 2302 MOTHERBOARD PCB KIT | DAC, Sea Tel USAT24, Sea Tel USAT30, Sea Tel 2406, Sea Tel 3004, Sea Tel 3011, Sea Tel 4004, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5009, Sea Tel 5010, Sea Tel 6004, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6011, Sea Tel ST60, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel ST88, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel ST94, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST144, Sea Tel 14600, Sea Tel 14600B | 133850-1 (Kit, PCB Assembly, DAC-2202 ACU W/Software, Inc PCB: 124813-1), 117319-4 (Loctite 242), 135285 (Procedure). |
| 135371 |  |
REPLACEMENT 2 CHANNEL ROTARY JOINT KIT | Sea Tel 2406, Sea Tel 3011, Sea Tel 3612, Sea Tel 4003A, Sea Tel 4006, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4010, Sea Tel 4012, Sea Tel 5009, Sea Tel 5010, Sea Tel 5012, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60, Sea Tel 8897, Sea Tel 8897A, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 14497, Sea Tel 14400, Sea Tel 14600, Sea Tel 14600B | 116466 (2CH Rotary Joint), 114580-005 (Washer), 114588-106 (Screw), 117319-4 (Loctite 242), 135293 (Procedure). |
| 135372 |  |
REPLACEMENT SSPB KIT, LBUC, CODAN 8W 6908-W/E-48/EX-CE | Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6006KU, Sea Tel 6009KU, Sea Tel 6012KU, Sea Tel 9797A, Sea Tel 9797B | 134442-4 (SSPB, KU Codan LBUC 8W, 48VDC-6908-W/E-48/EX-CE), 117319-30 (Loctite 2760), 135281 (Procedure). |
| 135373 |  |
REPLACEMENT GPS ANTENNA KIT, BNC, SEA TEL XX09 MK1 | Sea Tel 4009, Sea Tel 5009, Sea Tel 6009C, Sea Tel 6009KU | 125082 (GPS Antenna, Furuno, 197"), 117319-4 (Loctite 242), 135286 (Procedure). |
| 135374 |  |
REPLACEMENT END STOP AND HELICOIL KIT, SEA TEL XX04, 6003A, 6004 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 6003A, Sea Tel 6004 | 123997-240 (Helicoil, M12/M8), 123935-314 (Screw, Socket Set, Full Dog M8), 117319-30 (Loctite 2760), 135304 (Procedure). |
| 135375 |  |
REPLACEMENT CAM PLATE KIT, SEA TEL XX04 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004 | 122215 (Cam Stop, Azimuth), 135304 (Procedure). |
| 135376 |  |
REPLACEMENT CAM PLATE KIT, SEA TEL 6003A, 6004 | Sea Tel 6003A, Sea Tel 6004 | 114516 (Cam Stop, Azimuth), 135304 (Procedure). |
| 135377 |  |
REPLACEMENT HELICOIL KIT, SEA TEL XX04, 6003A/6004 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004, Sea Tel 6003A, Sea Tel 6004 | 123997-240 (Helicoil, M12/M8), 135304 (Procedure). |
| 135378 |  |
REPLACEMENT BASE SPINDLE HARNESS KIT, SEA TEL XX04 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004 | 122370 (Base Spindle Harness, DBS04), 117319-4 (Loctite 242), 135304 (Procedure). |
| 135379 |  |
REPLACEMENT BASE SPINDLE HARNESS KIT, SEA TEL 6003A, 6004 | Sea Tel 6003A, Sea Tel 6004 | 123392 (Harness Assembly, Interface), 117319-4 (Loctite 242), 135552 (Procedure). |
| 135380 |  |
REPLACEMENT PEDESTAL POWER SUPPLY ASSEMBLY KIT, COSEL, 4006-4006RZ, 24VDC BUC PSU | Sea Tel 2406, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6009KU | 125570-2 (Power Supply, Non-Braked), 117319-4 (Loctite 242), 135330 (Procedure). |
| 135381 |  |
REPLACEMENT PEDESTAL POWER SUPPLY KIT, BRAKED, SEA TEL XX06RZA, XX97B, XX07 | Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU, Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9707, Sea Tel 9797B | 125570-4 (Power Supply, Braked), 117319-4 (Loctite 242), 135329 (Procedure). |
| 135382 |  |
REPLACEMENT PCU KIT, SEA TEL XX06 | Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU | 123845-1 (PCU Assembly, XX06), 117319-4 (Loctite 242), 135319 (Procedure). |
| 135383 |  |
REPLACEMENT PCU KIT, SEA TEL XX97, X97A, XXX00 | Sea Tel 8897, Sea Tel 8897A, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9797, Sea Tel 9797A, Sea Tel 4497, Sea Tel 14400, Sea Tel 14600 | 125160-1 (PCU Assembly, XX97, XX97A, XX00), 117319-4 (Loctite 242), 135321 (Procedure). |
| 135384 |  |
REPLACEMENT PCU KIT, SEA TEL XX97B, XXX00B | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9797B, Sea Tel 14400B, Sea Tel 14600B | 127513-1 (PCU Assembly, XX97B, XX00B), 117319-4 (Loctite 242), 135322 (Procedure). |
| 135385 |  |
REPLACEMENT PCU KIT, SEA TEL XX07 | Sea Tel 9507, Sea Tel 9707 | 123845-3 (PCU Assembly, XX07), 117319-4 (Loctite 242), 135320 (Procedure). |
| 135386 |  |
REPLACEMENT POL AUX RELAY KIT, SEA TEL XX06, 4003A | Sea Tel 2406, Sea Tel 4003A, Sea Tel 4006, Sea Tel 6006KU | 116024-5 (Pol Aux Relay, Assembly), 117319-4 (Loctite 242), 135323 (Procedure). |
| 135387 |  |
REPLACEMENT POL AUX RELAY KIT, SEA TEL XX97, XX97A, XX97B, XXX00, XXX00B | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 4497, Sea Tel 14400, Sea Tel 14600, Sea Tel 14400B, Sea Tel 14600B | 116024-3 (Pol Aux Relay, Assembly), 117319-4 (Loctite 242), 135324 (Procedure). |
| 135388 |  |
REPLACEMENT TONE GENERATOR KIT, SEA TEL XX06RZA | Sea Tel 4006, Sea Tel 6006KU | 129518-1 (Tone Generator Assembly), 117319-4 (Loctite 242), 135332 (Procedure). |
| 135389 |  |
REPLACEMENT SERVO AMP KIT, 2.5A, ELEVATION / CROSS LEVEL / AZIMUTH = SEA TEL XX97, XX97A, ELEVATION / CROSS LEVEL = SEA TEL XX97B | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14497 | 116000-1 (Servo Amp, 2.5A), 117319-4 (Loctite 242), 135331 (Procedure). |
| 135390 |  |
REPLACEMENT SERVO AMP KIT, 5A, ELEVATION / CROSS LEVEL / AZIMUTH = SEA TEL XX00, XX00B, 9597B, AZIMUTH = SEA TEL XX97B | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9797B, Sea Tel 14400, Sea Tel 14600, Sea Tel 14400B, Sea Tel 14600B, Sea Tel 9597B | 116000-2 (Servo Amp, 5A), 117319-4 (Loctite 242), 135331 (Procedure). |
| 135391 |  |
REPLACEMENT POL POT KIT, VSAT, SEA TEL XX97, XX97A, XX97B | Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B | 117547 (Pol Pot Assembly, 3 Turn, 24T), 117319-4 (Loctite 242), 135328 (Procedure). |
| 135392 |  |
REPLACEMENT POL POT KIT, SEA TEL TVRO, XX97, XX97A, XX97B, XXX00, XXX00B, ST88/94/144 (NOT XX97/A KU ONLY) | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 115767 (Pol Pot Assembly, 3 Turn, 12T), 117319-4 (Loctite 242), 135327 (Procedure). |
| 135393-1 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 4-CH. RF | Sea Tel 9797, Sea Tel 9797A, Sea Tel 14600 | 116782-1 (Modem Assembly, Pedestal, 4-CH. RF), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135393-2 |  |
REPLACEMENT MODEM KIT, BASE, 4-CH. RF | Sea Tel 9797, Sea Tel 9797A, Sea Tel 14600 | 116782-2 (Modem Assembly, Base, 4-CH. RF), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135395-1 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 3 CH, 75 OHM | Sea Tel 2406, Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU, Sea Tel 4003A, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel 14600 | 117168-1 (Modem Assembly, Pedestal, 3 CH, 75 OHM), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135395-2 |  |
REPLACEMENT MODEM KIT, BASE, 3 CH, 75 OHM | Sea Tel 2406, Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU, Sea Tel 4003A, Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel 14600 | 117168-2 (Modem Assembly, Base, 3 CH, 75 OHM), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135395-5 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 3 CH, 75 OHM | Sea Tel 8897, Sea Tel 8897A, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9797, Sea Tel 9797A, Sea Tel 14497, Sea Tel 14400 | 117168-5 (Modem Assembly, Pedestal, 3 CH, 75 OHM), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135395-7 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 3 CH, 75 OHM, 5MHZ | Sea Tel 8897, Sea Tel 9497, Sea Tel 8897A, Sea Tel 9497A, Sea Tel 14400, Sea Tel 14497 | 117168-7 (Modem Assembly, Pedestal, 3 CH, 75 OHM, 5MHz), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135395-8 |  |
REPLACEMENT MODEM KIT, BASE, 3 CH, 75 OHM, 5 MHZ | Sea Tel 8897, Sea Tel 9497, Sea Tel 8897A, Sea Tel 9497A, Sea Tel 14400, Sea Tel 14497 | 117168-8 (Modem Assembly, Base, 3 CH, 75 OHM, 5 MHz), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135400-3 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 3 CH, 50 OHM | Sea Tel 2406, Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14600 | 117611-3 (Modem Assembly, Pedestal, 3 CH, 50 OHM), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135400-4 |  |
REPLACEMENT MODEM KIT, BASE, 3 CH, 50 OHM | Sea Tel 2406, Sea Tel 4006, Sea Tel 6006C, Sea Tel 6006KU, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 14600 | 117611-4 (Modem Assembly, Base, 3 CH, 50 OHM), 117319-4 (Loctite 242), 135310 (Procedure). |
| 135402 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 3-CH, 75 OHM, 13/18V | Sea Tel 4006, Sea Tel 6006KU | 127169-5 (Modem Assembly, Pedestal, 3-CH, 75 OHM, 13/18V), 117319-4 (Loctite 242), 135333 (Procedure). |
| 135404-1 |  |
REPLACEMENT MODEM KIT, PEDESTAL, 400MHZ, 4CH, RS 232 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 14400B | 130854-1 (Modem Assembly, 400MHz FSK, 4CH, ADE, RS 232), 117319-4 (Loctite 242), 135307 (Procedure). |
| 135404-2 |  |
REPLACEMENT MODEM KIT, BASE, 400MHZ, 4CH, RS 232 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 130854-2 (Modem Assembly, 400MHz FSK, 4CH, BDE, RS 232), 117319-4 (Loctite 242), 135307 (Procedure). |
| 135406 |  |
REPLACEMENT ELEVATION BELT KIT, SEA TEL ST24, 2406 | Sea Tel 2406, Sea Tel ST24 | 116903-12937 (Belt, Elevation), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135407 |  |
REPLACEMENT ELEVATION BELT KIT, SEA TEL XX07, XX97B, XX00B, 9711, 9711QOR, ST88/94/144 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sel Tel 14400B, Sea Tel 14600B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 123907-17269 (Belt, Elevation), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135408 |  |
REPLACEMENT ELEVATION BELT KIT, SEA TEL XX97A, XX00 | Sea Tel 8897A, Sea Tel 9497A, Sea Tel 9797A, Sea Tel 14400, Sea Tel 14600 | 123907-14537 (Belt, Elevation), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135409 |  |
REPLACEMENT CROSS LEVEL BELT KIT, SEA TEL 4003A, XX97 | Sea Tel 4003A, Sea Tel 8897, Sea Tel 9497, Sea Tel 9797, Sea Tel 14497 | 116903-10937 (Belt, Cross Level), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135410 |  |
REPLACEMENT CROSS LEVEL BELT KIT, SEA TEL 2406 | Sea Tel 2406 | 116903-11037 (Belt, Cross Level), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135531 |  |
REPLACEMENT CROSS LEVEL BELT KIT, SEA TEL XX97A, XXX00 | Sea Tel 8897A, Sea Tel 9497A, Sea Tel 9797A, Sea Tel 14400, Sea Tel 14600 | 123907-13737 (Belt, Cross Level), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135532 |  |
REPLACEMENT CROSS LEVEL BELT KIT, SEA TEL XX07, XX97B, XXX00B, 9711, 9711QOR, ST88/94/144 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 14400B, Sea Tel 14600B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 123907-14569 (Belt, Cross Level), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135533 |  |
REPLACEMENT ELEVATION BELT KIT, SEA TEL XX97 | Sea Tel 8897, Sea Tel 9497, Sea Tel 9797, Sea Tel 14497 | 116903-11337 (Belt, Elevation), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135534 |  |
REPLACEMENT AZIMUTH DRIVE CHAIN KIT, SEA TEL XX97/A/B, XXX00/B, XX07, 9711/QOR, ST88/ST94/ST144 | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel 14600, Sea Tel 14600B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 108305-2 (Drive Chain, Azimuth), 135308 (Procedure). |
| 135535 |  |
REPLACEMENT ENCODER BELT KIT, SEA TEL XX97, XX97A, XXX00 | Sea Tel 8897, Sea Tel 9497, Sea Tel 9797, Sea Tel 14497 | 116903-04925 (Belt, Encoder), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135536 |  |
REPLACEMENT LEVEL CAGE BELT KIT, SEA TEL XX97A, SEA TEL XX00 | Sea Tel 8897A, Sea Tel 9497A, Sea Tel 9797A, Sea Tel 14400, Sea Tel 14600 | 116430-17025 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135537 |  |
REPLACEMENT LEVEL CAGE BELT KIT, SEA TEL XX97B, XX07, XXX00B | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 14400B, Sea Tel 14600B | 116430-17525 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135538 |  |
REPLACEMENT LEVEL CAGE BELT KIT, SEA TEL XX97 | Sea Tel 8897, Sea Tel 9497, Sea Tel 9797, Sea Tel 14497 | 109770-21 (Belt, Level Cage), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135539 |  |
REPLACEMENT CONSCAN BELT KIT, SEA TEL XX97 | Sea Tel 8897, Sea Tel 9497, Sea Tel 9797, Sea Tel 14497 | 116430-20519 (Belt, Conscan), 116430-22019 (Belt, Conscan), 117319-4 (Loctite 242), 135262 (Procedure). |
| 135541-4 |  |
REPLACEMENT DAC-2302 KIT, 70 MHZ, 9-PIN | DAC | 127660-4 (DAC-2302 Assembly, SCPC, 70MHz, 9-Pin), 135311 (Procedure). |
| 135541-5 |  |
REPLACEMENT DAC-2302 KIT, 140MHZ, 9-PIN | DAC | 127660-5 (DAC-2302 Assembly, SCPC, 140MHz, 9-Pin), 135311 (Procedure). |
| 135543-2 |  |
REPLACEMENT 70MHZ SCPC RECEIVER KIT | DAC | 112019-2 (SCPC Receiver, 70MHz), 135306 (Procedure). |
| 135543-3 |  |
REPLACEMENT 140MHZ SCPC RECEIVER KIT | DAC | 112019-3 (SCPC Receiver, 140MHz), 135306 (Procedure). |
| 135545 |  |
REPLACEMENT 4 CHANNEL ROTARY JOINT KIT | Sea Tel 5004UA, Sea Tel 6011, Sea Tel 8897B, Sea Tel 9497B, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 127968-1 (4CH Rotary Joint), 114593-122 (Screw), 121323-146 (Screw), 114580-007 (Washer), 117319-4 (Loctite 242), 117319-30 (Loctite 2760), 135305 (Procedure). |
| 135546 |  |
REPLACEMENT C-BAND RADAR TRANSMIT REJECT FILTER KIT (VSAT) | Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B | 129948-1 (Filter, C-Band VSAT), 135309 (Procedure). |
| 135547 |  |
REPLACEMENT LNB KIT, C-BAND, PLL, NORSAT 3130F, SEA TEL VSAT | Sea Tel 6006C, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B | 124556-3 (LNB, C-Band Norsat 3130F, VSAT), 135294 (Procedure). |
| 135548 |  |
REPLACEMENT LNB KIT, C-BAND, SEA TEL TVRO | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 114540 (LNB, C-Band, TVRO), 135294 (Procedure). |
| 135549-1 |  |
REPLACEMENT LNB KIT, NJRC, 11.70 TO 12.20 GHZ, PLL, F | Sea Tel 2406, Sea Tel 4003A, Sea Tel 4006, Sea Tel 6006KU, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B | 122188-1 (LNB, NJRC, 11.70-12.20 GHz), 135294 (Procedure). |
| 135549-2 |  |
REPLACEMENT LNB KIT, NJRC, 12.25 TO 12.75 GHZ, PLL, F | Sea Tel 2406, Sea Tel 4003A, Sea Tel 4006, Sea Tel 6006KU, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B | 122188-2 (LNB, NJRC 12.25-12.75 GHz), 135294 (Procedure). |
| 135549-3 |  |
REPLACEMENT LNB KIT, NJRC, 10.95 TO 11.70 GHZ, PLL, F | Sea Tel 2406, Sea Tel 4003A, Sea Tel 4006, Sea Tel 6006KU, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B | 122188-3 (LNB, NJRC 10.95-11.70 GHz), 135294 (Procedure). |
| 135550 |  |
REPLACEMENT LEVEL CAGE MOTOR KIT, SEA TEL xx07, XX97, XX97A, XX97B, XXX00, XXX00B | Sea Tel 8897, Sea Tel 8897A, Sea Tel 8897B, Sea Tel 9497, Sea Tel 9497A, Sea Tel 9497B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 9597B, Sea Tel 14497, Sea Tel 14400, Sea Tel 14400B, Sea Tel 14600, Sea Tel 14600B | 122532-1 (LC Motor Assembly - 116059-1), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 135334 (Procedure). |
| 135551 |  |
REPLACEMENT CROSS LEVEL MOTOR KIT, BRAKED, SEA TEL XX07, XX97B, XXX00B, 9711, 9711QOR, ST88/94/144 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711 QOR, Sea Tel 14400B, Sea Tel 14600B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 127901-1 (CL Motor Assembly, W/Brake), 117319-4 (Loctite 242), 135335 (Procedure). |
| 135911 |  |
REPLACEMENT LNB KIT, C-BAND, PLL, NORSAT 3130N, SEA TEL VSAT | Sea Tel 6009C, Sea Tel 6012C, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797, Sea Tel 9797A, Sea Tel 9797B, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel 14600B | 124556-1 (LNB, C-Band Norsat 3130N, VSAT), 135294 (Procedure). |
| 135912 |  |
REPLACEMENT PCU KIT, SEA TEL COASTAL | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 125517-3 (PCU Assembly, W/O Splitter, W/-5 DVB), 117319-4 (Loctite 242), 135553 (Procedure). |
| 135913 |  |
REPLACEMENT PCU KIT, SEA TEL ST24 | Sea Tel ST24 | 132362-1 (PCU Assembly, ST24), 117319-4 (Loctite 242), 135398 (Procedure). |
| 135914 |  |
REPLACEMENT PCU KIT, W/MODEM, NO BRAKES, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 128078 (PCU Assembly, USAT, W/Modem), 117319-4 (Loctite 242), 135540 (Procedure). |
| 135915 |  |
REPLACEMENT DACP CONTROL PANEL KIT, SEA TEL COASTAL | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 119547 (Antenna Control Panel Assembly, DACP), 117319-4 (Loctite 242), 135394 (Procedure). |
| 135916 |  |
REPLACEMENT GACP CONTROL PANEL KIT, SEA TEL ST24 | Sea Tel ST24 | 130922-1 (Enclosure Assembly, GACP), 117319-4 (Loctite 242), 135369 (Procedure). |
| 135917 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL ST24 | Sea Tel ST24 | 132494-1 (Pol Motor Assembly, ST24), 117319-4 (Loctite 242), 135399 (Procedure). |
| 135918 |  |
REPLACEMENT EL MOTOR KIT, SEA TEL ST24 | Sea Tel ST24 | 133094-1 (EL Motor Assembly, ST24), 117319-4 (Loctite 242), 135401 (Procedure). |
| 135919 |  |
REPLACEMENT AZIMUTH MOTOR KIT, SEA TEL ST24 | Sea Tel ST24 | 132499-1 (AZ Motor Assembly, ST24), 117319-4 (Loctite 242), 135405 (Procedure). |
| 135920 |  |
REPLACEMENT MOTION PLATFORM PCB KIT, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 128088 (PCB Assembly, Motion Platform, USAT), 117319-4 (Loctite 242), 135542 (Procedure). |
| 135921 |  |
REPLACEMENT RATE SENSOR KIT, FEED, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 128115 (PCB Assembly, Feed Rate Sensor, USAT), 117319-4 (Loctite 242), 117319-30 (Loctite 2760), 135544 (Procedure). |
| 135922 |  |
REPLACEMENT ELEVATION BELT KIT, SEA TEL COASTAL, USAT | Sea Tel C18, Sea Tel C24, Sea Tel C30, Sea Tel USAT24, Sea Tel USAT30 | 116903-09637 (Belt, Elevation), 117319-4 (Loctite 242), 136431 (Procedure). |
| 135923 |  |
REPLACEMENT AZIMUTH BELT KIT, SEA TEL COASTAL | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 116903-14537 (Belt, Azimuth), 117319-4 (Loctite 242), 136431 (Procedure). |
| 135924 |  |
REPLACEMENT AZIMUTH BELT KIT, SEA TEL USAT 24 | Sea Tel USAT24 | 116903-17637 (Belt, Azimuth), 117319-4 (Loctite 242), 136431 (Procedure). |
| 135925 |  |
REPLACEMENT AZIMUTH BELT KIT, SEA TEL ST24 | Sea Tel ST24 | 123907-18037 (Belt, Azimuth), 117319-4 (Loctite 242), 136431 (Procedure). |
| 135926 |  |
REPLACEMENT POL POT BELT KIT, SEA TEL COASTAL | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30 | 116430-14012 (Belt, Pol Pot), 117319-4 (Loctite 242), 136431 (Procedure). |
| 135927 |  |
REPLACEMENT POL MOTOR BELT KIT, SEA TEL COASTAL, SEA TEL USAT | Sea Tel C18, Sea Tel C20, Sea Tel C24, Sea Tel C30, Sea Tel USAT24, Sea Tel USAT30 | 116430-14025 (Belt, Pol), 117319-4 (Loctite 242), 136431 (Procedure). |
| 135928 |  |
REPLACEMENT POL POT BELT KIT, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 116430-15012 (Belt, Pol Pot), 117319-4 (Loctite 242), 136431 (Procedure). |
| 135932 |  |
REPLACEMENT AZIMUTH STOP KIT, COMPLETE, SEA TEL XX04 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004 | 131831-1 (Pulley, 100T), 122215 (Cam Plate), 122370 (Base Harness), 123935-314 (End Stop), 123997-240 (Helicoil), 113945-5 (Shim), 117319-4 (Loctite 242), 117319-30 (Loctite 2760), 135934 (Procedure). |
| 135933 |  |
REPLACEMENT AZIMUTH STOP KIT, COMPLETE, SEA TEL 6003A, 6004 | Sea Tel 6003A, Sea Tel 6004 | 125248 (Pulley, 100T), 114516 (Cam Plate), 123392 (Interface Harness), 123935-314 (End Stop), 123997-240 (Helicoil), 113945-5 (Shim), 117319-4 (Loctite 242), 117319-30 (Loctite 2760), 135935 (Procedure). |
| 136228-1 |  |
REPLACEMENT INTERFACE HARNESS KIT, 112.5", SEA TEL COASTAL 30 | Sea Tel C30 | 124651-1 (Interface Harness Assembly, Coastal, 112.5 IN), 117319-4 (Loctite 242), 136230 (Procedure). |
| 136228-2 |  |
REPLACEMENT INTERFACE HARNESS KIT, 84.5", SEA TEL COASTAL 18, 20, 24 | Sea Tel C18, Sea Tel C20, Sea Tel C24 | 124651-2 (Interface Harness Assembly, Coastal, 84.5 IN), 117319-4 (Loctite 242), 136230 (Procedure). |
| 136229 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL USAT 24 | Sea Tel USAT24 | 116903-17637 (Belt, Azimuth), 116903-09637 (Belt, Elevation), 116430-15012 (Belt, Pol Pot), 116430-14025 (Belt, Polang), 117319-4 (Loctite 242), 136431 (Procedure). |
| 136432 |  |
REPLACEMENT TERMINAL MOUNTING STRIP (TMS) KIT | Sea Tel 3011, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 9597B, Sea Tel 9707, Sea Tel 9797B, Sea Tel 14600B | 121628-4 (Terminal Mounting Strip Assembly), 117319-4 (Loctite 242), 136430 (Procedure). |
| 136495 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 6009 C | Sea Tel 6009 C | 136613 (PCU Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 135371 (2CH Rotary Joint Kit), 134882 (GPS Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 134926 (Pol Motor Kit), 134919 (Pol Pot Kit), 136708 (EL Belt Kit), 135352 (CL Belt Kit), 130392-1 (Pelican Case). |
| 136496 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL USAT24, W/BRAKES | Sea Tel USAT24 | 138256 (PCU W/Brakes Kit), 135920 (Motion Platform PCB Kit), 135921 (Feed Rate Sensor Kit), 138286 (EL Motor Kit, W/Brakes), 138285 (AZ Motor Kit, W/Brakes), 134918 (Pol Pot Kit), 125226-1 (Pol Motor Kit), 134877-3 (GPS Kit), 136229 (Belt Kit), 130392-1 (Pelican Case). |
| 136501 |  |
REPLACEMENT BUC KIT, KU, 8W, CODAN MINI BUC FULL-BAND | Sea Tel USAT24, Sea Tel USAT30, Sea Tel 3011, Sea Tel 3612, Sea Tel 4009, Sea Tel 4010, Sea Tel 4012, Sea Tel 5009, Sea Tel 5010, Sea Tel 5012 | 132345-1 (8W Codan Mini BUC, Ku, Full-Band), 117319-4 (Loctite 242), 136502 (Procedure). |
| 136564-1 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 9797B | Sea Tel 9797B | 135384 (PCU Kit), 135387 (Pol Aux Relay Kit), 135371 (Rotary Joint Kit), 135389 (2.5A Servo Amp Kit), 135390 (5A Servo Amp Kit), 135344 (Level Cage Kit), 134932 (EL Motor Kit), 135551 (CL Motor Kit), 134940 (AZ Motor Kit), 135350-1 (ADE Modem Kit), 135350-2 (BDE Modem Kit), 135550 (LC Motor Kit), 128545-1 (Belt Kit), 130392-1 (Pelican Case). |
| 136572 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 9711, SEA TEL 9711QOR | Sea Tel 9711, Sea Tel 9711QOR | 136613 (PCU Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 134932 (EL motor Kit), 135551 (CL Motor Kit), 134940 (AZ Motor Kit), 135371 (2CH Rotary Joint Kit), 135407 (EL Belt Kit), 135532 (CL Belt Kit), 135534 (AZ Drive Chain), 130392-1 (Pelican Case). |
| 136602 |  |
REPLACEMENT AZIMUTH MOTOR KIT, SEA TEL 3011 | Sea Tel 3011 | 128209-2 (Motor), 114079-2 (Pulley), 114590-142 (Set Screw), Loctite 222 (117319-21), Loctite 242 (117319-4), Loctite 638 (117319-27), 121730 (Loctite Procedure), 136824 (Procedure). |
| 136604 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL 3011 | Sea Tel 3011 | 131115-15037 (Belt, Azimuth), 131115-11237 (Belt, Cross Level), 116903-12537 (Belt, Elevation), 117319-4 (Loctite 242), 135262 (Procedure). |
| 136606 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL 3011 | Sea Tel 3011 | 132981-1 (Motor), 127047-1 (Pulley), 114590-824 (Set Screw), Loctite 222 (117319-21), Loctite 242 (117319-4), Loctite 638 (117319-27), 121730 (Loctite Procedure), 136825 (Procedure). |
| 136612 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 3011 | Sea Tel 3011 | 136613 (PCU Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 135371 (2CH Rotary Joint Kit), 134882 (GPS Kit), 134931 (EL/CL Motor Kit), 136602 (AZ Motor Kit), 124109-2 (Pol Pot Kit), 136606 (Pol Motor Kit), 136604 (Belt Kit), 130392-1 (Pelican Case). |
| 136613 |  |
REPLACEMENT PCU ASSEMBLY KIT, SEA TEL XX09 MK2, XX10, XX11, ST60 | Sea Tel 3011, Sea Tel 4009, Sea Tel 4010, Sea Tel 5009, Sea Tel 5010, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 9711, Sea Tel 9711QOR, Sea Tel ST60 | 131057-1 (PCU Assembly, XX09 MK2, XX10), 117319-4 (Loctite 242), 136614 (Procedure). |
| 136661 | COMPREHENSIVE SPARE PARTS KIT, SEA TEL COASTAL 18 | Sea Tel C18 | 135912 (PCU Kit), 125224-1 (EL/AZ Motor Kit), 125226-1 (Pol Motor Kit), 125225-1 (Pol Pot Kit), 136228-2 (Interface Harness Kit), 134877-4 (GPS Kit), 135922 (EL Belt Kit), 135923 (AZ Belt Kit), 135927 (Pol Motor Belt Kit), 135926 (Pol Pot Belt Kit). | |
| 136662 | COMPREHENSIVE SPARE PARTS KIT, SEA TEL ST24 | Sea Tel ST24 | 135913 (PCU Kit), 135918 (EL Motor Kit), 135919 (AZ Motor Kit), 135917 (Pol Motor Kit), 134882 (GPS Kit), 135406 (EL Belt Kit), 135925 (AZ Belt Kit), 135358 (Pol Belt Kit). | |
| 136663 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 3004, 4004, 5004 | Sea Tel 3004, Sea Tel 4004, Sea Tel 5004 | 135336 (PCU Kit), 135343 (Level Cage Kit), 135348 (ADE Modem Kit), 124110-2 (EL/CL Motor Kit), 124112-3 (AZ Motor Kit), 124115-2 (Level Cage Motor Kit), 135339 (Pol Aux Relay Kit), 124109-2 (Pol Pot kit), 124108-2 (Pol Motor Kit), 135932 (AZ Stop Kit), 134877-1 (GPS Kit), 123553-1 (Belt Kit), 130392-1 (Pelican Case). |
| 136666 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 5004UA | Sea Tel 5004UA | 138481 (PCU Kit, UA), 135343 (Level Cage Kit), 135348 (ADE Modem Kit), 134877-1 (GPS Antenna Kit), 135339 (Polang Relay Kit), 124109-2 (Pol Pot Kit), 124108-2 (Pol Motor Kit), 124110-2 (EL/CL Motor Kit), 124112-3 (AZ Motor Kit), 124115-2 (Level Cage Motor Kit), 123553-1 (Pedestal Belt Kit), 135545 (4-CH Rotary Joint Kit) 130392-1 (Pelican Case). |
| 136667 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 6004 | Sea Tel 6004 | 135337 (PCU Kit), 135344 (Level Cage Kit), 135348 (ADE Modem Kit), 134877-1 (GPS Antenna Kit), 135340 (Pol Aux Relay Kit), 124109-1 (Pol Pot Kit), 124108-1 (Pol Motor Kit), 124110-1 (CL Motor Kit), 124110-2 (EL Motor Kit), 124112-3 (AZ Motor Kit), 124115-2 (Level Cage Motor Kit), 121488-2 (Pedestal Belt Kit), 135933 (AZ Stop Kit), 130392-1 (Pelican Case). |
| 136669 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 8897B, 9497B | Sea Tel 8897B, Sea Tel 9497B | 135384 (PCU Kit), 135344 (Level Cage Kit), 135389 (2.5A Servo Amp Kit), 135390 (5A Servo Amp Kit), 135381 (Power Supply kit), 135404-1 (ADE Modem Kit), 135404-2 (BDE Modem Kit), 135387 (Pol Aux Relay Kit), 134932 (EL motor Kit), 135551 (CL Motor Kit), 134940 (AZ Motor Kit), 135550 (Level Cage Motor Kit), 135545 (4CH Rotary Joint Kit), 134877-2 (GPS Kit), 137335 (RF Switch Kit), 135392 (Pol Pot kit), 134925 (Pol Motor Kit), 128545-1 (Belt Kit), 135534 (AZ Drive Chain Kit), 130392-1 (Pelican Case). |
| 136671 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 14400B | Sea Tel 14400B | 135384 (PCU Kit), 135344 (Level Cage Kit), 135390 (5A Servo Amp Kit), 137731 (Power Supply Kit), 135404-1 (ADE Modem Kit), 135404-2 (BDE Modem Kit), 135387 (Pol Aux Relay kit), 135545 (4CH Rotary Joint Kit), 134932 (EL Motor Kit), 135551 (CL Motor Kit), 134940 (AZ Motor Kit), 135550 (Level Cage Motor Kit), 134877-2 (GPS Kit), 135392 (Pol Pot Kit), 134925 (Pol Motor Kit), 128545-1 (Belt Kit), 135534 (AZ Drive Chain Kit), 130392-1 (Pelican Case). |
| 136677 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL USAT24, NO BRAKES | Sea Tel USAT24 | 138256 (PCU Kit), 135920 (Motion Platform PCB Kit), 135921 (Feed Rate Sensor Kit), 134918 (Pol Pot Kit), 125226-1 (Pol Motor Kit), 130775 (EL Motor Kit), 130776 (AZ Motor Kit), 134877-3 (GPS Kit 136229 (Belt Kit), 130392-1 (Pelican Case). |
| 136678 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL USAT 30, NO BRAKES | Sea Tel USAT30 | 138256 (PCU Kit), 135920 (Motion Platform PCB Kit), 135921 (Feed Rate Sensor Kit), |
| 136679 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 2406 | Sea Tel 2406 | 137300 (PCU Assembly Kit), 137301 (Level Cage Kit), 135371 (2CH Rotary Joint Kit), 134877-5 (GPS Kit), 127425-1 (Belt Kit), 135395-2 (Replacement Belt Kit), 135395-2 (BDE Modem Kit), 135395-1 (ADE Modem Kit), 135380 (Power Supply Kit), 124110-1 (EL/CL Motor Kit), 124112-3 (AZ Motor Kit), 134924 (Pol Motor Kit), 124109-2 (Pol Pot Kit), 135386 (Pol Aux Relay Kit), 130392-1 (Pelican Case). |
| 136680 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL XX09 KU | Sea Tel 4009, Sea Tel 5009, Sea Tel 6009 KU | 136613 (PCU Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 135371 (2CH Rotary Joint Kit), Pol Motor Kit (124108-2), 124109-2 (Pol Pot Kit), 134882 (GPS Kit), 136708 (EL belt Kit), 135352 (CL Belt Kit), 130392-1 (Pelican Case). |
| 136683 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL XX10 | Sea Tel 4010, Sea Tel 5010 | 136613 (PCU Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 134931 (EL/CL Motor Kit), 134939 (AZ Motor Kit), 124108-2 (Pol Motor Kit), 124109-2 (Pol Pot Kit), 135371 (2CH Rotary Joint Kit), 134882 (GPS Kit), 132410 (Belt Kit), 130392-1 (Pelican Case). |
| 136708 |  |
REPLACEMENT ELEVATION BELT KIT, FOR IDLER, SEA TEL XX09, XX12, ST60 | Sea Tel 3612, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5009, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 123907-157371 (Belt, Elevation), 117319-4 (Loctite 242), 135277 (Procedure). |
| 136738 |  |
REPLACEMENT MXP PCB KIT, SEA TEL 4009 MK3, XX12 | Sea Tel 3612, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5012, Sea Tel 6012C, Sea Tel 6012KU | 133373-1 (PCB Assembly, MXP-2011), 119745-116 (Screws), 117319-4 (Loctite 242), 136826 (Procedure). |
| 136739 |  |
REPLACEMENT MXP POWER SUPPLY KIT, SEA TEL 4009 MK3, XX12 | Sea Tel 3612, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5012, Sea Tel 6012C, Sea Tel 6012KU | 133729-5 (Power Supply MXP, Switching, 75W), 120077-112 (Screws), 114580-210 (Washers), 128809-211 (Nut), 119745-116 (Screws), 117319-4 (Loctite 242), 136827 (Procedure). |
| 136740 |  |
REPLACEMENT ICU ASSEMBLY KIT, SEA TEL 4009 MK3, XX12 | Sea Tel 3612, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5012, Sea Tel 6012 C, Sea Tel 6012 KU | 134735-1 (ICU Assembly), 114581-250 (Washer), 114581-250 (Washer), 120089-251 (Nut), 117319-4 (Loctite 242), 136828 (Procedure). |
| 136741 |  |
REPLACEMENT POL POT KIT, SEA TEL 4012 | Sea Tel 4012 | 136611-1 (Pol Pot Assembly), 119973-116 (Screw), 114580-230 (Washer), 114581-230 (Washer), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 136829 (Procedure). |
| 136742 |  |
REPLACEMENT POL MOTOR KIT, SEA TEL 4012 | Sea Tel 4012 | 136610-1 (Pol Motor Assembly), 119973-116 (Screw), 114580-230 (Washer), 114581-230 (Washer), 117319-21 (Loctite 222), 117319-4 (Loctite 242), 117319-27 (Loctite 638), 121730 (Loctite Procedure), 136830 (Procedure). |
| 136743 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 4012, POL POT | Sea Tel 4012 | 136740 (ICU Kit), 135347 (MDE Kit), 136738 (MXP PCB Kit), 136739 (MXP Power Supply Kit), 136741 (Pol Pot Kit), 136742 (Pol Motor Kit), 134882 (GPS Antenna Kit), 135371 (2-CH Rotary Joint Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 136708 (EL Belt Kit), 135352 (CL Belt Kit), 135353 (AZ Drive Chain Kit), 130392-1 (Pelican Case). |
| 136814 | REPLACEMENT AZIMUTH MOTOR KIT, SEA TEL 3011 | Sea Tel 3011 | 128209-2 (Motor), 114079-2 (Pulley), 114590-142 (Set Screw), Loctite 222 (117319-21), Loctite 242 (117319-4), Loctite 638 (117319-27), 121730 (Loctite Procedure), 136824 (Procedure). | |
| 136815 | REPLACEMENT POL MOTOR KIT, SEA TEL 3011 | Sea Tel 3011 | 132981-1 (Motor), 127047-1 (Pulley), 114590-824 (Set Screw), Loctite 222 (117319-21), Loctite 242 (117319-4), Loctite 638 (117319-27), 121730 (Loctite Procedure), 136825 (Procedure). | |
| 136816 |  |
REPLACEMENT AZIMUTH BELT KIT, SEA TEL 3011 | Sea Tel 3011 | 131115-15037 (Belt, Azimuth), 117319-4 (Loctite 242), 135262 (Procedure). |
| 136817 | REPLACEMENT PEDESTAL BELT KIT, SEA TEL 3011 | Sea Tel 3011 | 131115-15037 (Belt, Azimuth), 131115-11237 (Belt, Cross Level), 116903-12537 (Belt, Elevation), 117319-4 (Loctite 242), 135262 (Procedure). | |
| 136818 |  |
REPLACEMENT ICU MOTHERBOARD PCB KIT, SEA TEL 4009 MK3, XX12 | Sea Tel 3612, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5012, Sea Tel 6012 C, Sea Tel 6012 KU | 133368-1 (ICU PCB Assembly), 119745-116 (Screws x13), 117319-22 (Loctite 248), 136831 (Procedure). |
| 136819 | REPLACEMENT MOTION PLATFORM PCB KIT, SEA TEL 4012 | Sea Tel 4012 | 135141-1 (Motion Platform PCB, 11G3), 119745-116 (Screws), 117319-22 (Loctite 248), 136832 (Procedure). | |
| 136820 |  |
REPLACEMENT LNB KIT, SWM QUAD LO, KU N-TYPE | Sea Tel 3612, Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5012, Sea Tel 6012 KU, Sea Tel 9797B, Sea Tel 9711 | 136128-2 (LNB, SMW, Quad LO, KU Band, Type N), 117319-4 (Loctite 242), 135294 (Procedure). |
| 136821 |  |
REPLACEMENT LNB KIT, C-BAND, DRO, 8225RF, F-TYPE | Sea Tel ST60 | 134164-1 (LNB C-Band, DRO, 8225RF), 135294 (Procedure). |
| 136822 |  |
REPLACEMENT C-BAND RX BP/RADAR REJECT FILTER KIT | Sea Tel 9711, Sea Tel 9711QOR | 133014-1 (Filter, C-Band, RX BP/Radar Reject), 135309 (Procedure). |
| 136823 |  |
REPLACEMENT QOR SWITCH KIT | Sea Tel 9711QOR | 133595-1 (Encosure Assembly, QOR Switch), 117319-4 (Loctite 242), 136384 (Procedure). |
| 137272-1 |  |
ENHANCEMENT INTERFACE HARNESS W/SPINDLE KIT, SEA TEL C18 | Sea Tel C18 | 124651-2 (Interface Harness, Coastal, 84.5"), 128720-1 (Spindle Wrap, 2.00"), Loctite 242 (117319-4), Loctite 2760 (117319-30), 137273 (Procedure). |
| 137272-2 |  |
ENHANCEMENT INTERFACE HARNESS W/SPINDLE KIT, SEA TEL C20, C24 | Sea Tel C20, Sea Tel C24 | 124651-2 (Interface Harness, Coastal, 84.5"), 128720 (Spindle Wrap, 2.75"), 117319-4 (Loctite 242), 117319-30 (Loctite 2760), 137273 (Procedure). |
| 137272-3 |  |
ENHANCEMENT INTERFACE HARNESS W/SPINDLE KIT, SEA TEL C30 | Sea Tel C30 | 124651-1 (Interface Harness, Coastal, 112.5"), 128720 (Spindle Wrap, 2.75"), 117319-4 (Loctite 242), 117319-30 (Loctite 2760), 137273 (Procedure). |
| 137300 |  |
REPLACEMENT PCU KIT, SEA TEL 2406 | Sea Tel 2406 | 121185-4 (Replacement PCU Kit), 124077-4 (3M Adhesive), 117319-4 (Loctite 242), 137302 (Procedure). |
| 137301 |  |
REPLACEMENT LEVEL CAGE KIT, BASE EXIT, SEA TEL 2406 | Sea Tel 2406 | 122937-2 (Replacement Level Cage Kit, 2406), 137303 (Procedure). |
| 137334 |  |
Comprehensive Spare Parts Kit, SEA TEL ST88, ST94, ST144 | Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 137737 (PCU), 135347 (MDE), 137335 (RF SWTCH), 135404-2 (MODEM, 400MHZ), 135392 (POL POT), 134932 (EL MOTOR), 135551 (CL MOTOR), 134940 (AZ MOTR W/ENC), 135407 (EL BELT), 135532 (CL BELT), 135545 (4 CHANNEL ROTARY JOINT), 134882 (GPS), 134925 (POL MOTOR), 130392-1 (CASE) |
| 137335 |  |
REPLACEMENT RF SWITCH KIT, SEA TEL 8897B, 9497B, 14400B, ST88/94/144 | Sea Tel 8897B, Sea Tel 9497B, Sea Tel 14400B, Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 128204-1 (RF Switch Ass'y), 117319-4 (Loctite 242), 137736 (Procedure). |
| 137731 |  |
REPLACEMENT POWER SUPPLY KIT 200W, SEA TEL 9597B, 14400, 14400B | Sea Tel 9597B, Sea Tel 14400, Sea Tel 14400B | 128282-1 (Power Supply 200W, W/Brake-Optional), 117319-4 (Loctite 242), 137732 (Procedure). |
| 137737 |  |
REPLACEMENT MK2 TVRO PCU KIT, SEA TEL ST88, ST94, ST144 | Sea Tel ST88, Sea Tel ST94, Sea Tel ST144 | 131057-3 (PCU Enclosure, MK2, 4CH, 422), 117319-4 (Loctite 242), 137738 (Procedure). |
| 137803 |  |
REPLACEMENT BALANCE WEIGHT KIT | Sea Tel 2406, Sea Tel 3004, Sea Tel 3011, Sea Tel 3612, Sea Tel 4003A, Sea Tel 4004, Sea Tel 4006, Sea Tel 4009, Sea Tel 4010, Sea Tel 4012, Sea Tel 5004, Sea Tel 5004UA, Sea Tel 5009, Sea Tel 5010, Sea Tel 5012, Sea Tel 6003A, Sea Tel 6004, Sea Tel 6006 C, Sea Tel 6006 KU, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 108517-1 (Weight, 0.5 OZ) x2, 108517-2 (Weight, 1.0 OZ) x4, 108519-1 (Weight, 4.0 OZ) x1, 108519-2 (Weight, 5.0 OZ) x1, 108519-3 (Weight, 6.0 OZ) x1, 108519-4 (Weight, 7.0 OZ) x1, Screws, Washers, (117319-30) Loctite 2760, 139454 (Procedure). |
| 138184 |  |
REPLACEMENT AZIMUTH BELT KIT, SEA TEL USAT30 | Sea Tel USAT30 | 116903-18237 (Belt, Azimuth), 117319-4 (Loctite 242), 136431 (Procedure). |
| 138185 |  |
REPLACEMENT PEDESTAL BELT KIT, SEA TEL USAT30 | Sea Tel USAT30 | 116903-18237 (Belt, Azimuth), 116903-09637 (Belt, Elevation), 116430-15012 (Belt, Pol Pot), 116430-14025 (Belt, Polang), 117319-4 (Loctite 242), 136431 (Procedure). |
| 138254 |  |
REPLACEMENT AZIMUTH MOTOR KIT, W/BRAKE, SEA TEL USAT30 | Sea Tel USAT30 | 132297-2 (AZ Motor Assembly, USAT 30, W/Brakes), 117319-4 (Loctite 242), 135931 (Procedure). |
| 138255 |  |
REPLACEMENT ELEVATION MOTOR KIT, W/BRAKE, SEA TEL USAT 30 | Sea Tel USAT30 | 132289-2 (EL Motor Assembly, USAT30, W/Brakes), 117319-4 (Loctite), 135930 (Procedure). |
| 138256 |  |
REPLACEMENT PCU KIT, W/MODEM, W/WITHOUT/BRAKES, SEA TEL USAT | Sea Tel USAT24, Sea Tel USAT30 | 133123 (PCU Assembly, W/Modem & Brake, USAT), 117139-4 (Loctite 242), 135540 (Procedure). |
| 138257 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 3612, 4009 MK3, 5012, 6012 KU | Sea Tel 3612, Sea Tel 4009 MK3, Sea Tel 5012, Sea Tel 6012 KU | 136740 (ICU Assembly Kit), 135347 (MDE Kit), 136738 (MXP PCB Kit), 136739 (MXP Power Supply Kit), 134882 (GPS Antenna Kit), 135371 (2CH Rotary Joint Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 136708 (EL Belt Kit), 135352 (CL Belt Kit), 124108-2 (Pol Motor Kit), 124109-2 (Pol Pot Kit), 130392-1 (Pelican case). |
| 138285 |  |
REPLACEMENT AZIMUTH MOTOR KIT, W/BRAKE, SEA TEL USAT24 | Sea Tel USAT24 | 128161 (AZ Motor Assembly, USAT24 W/Brakes), 117319-4 (Loctite 242), |
| 138286 |  |
REPLACEMENT ELEVATION MOTOR KIT, W/BRAKE, SEA TEL USAT24 | Sea Tel USAT24 | 128160 (EL Motor Assembly, USAT24, W/Brakes), 117319-4 (Loctite 242), 135930 (Procedure). |
| 138399 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 9707, 400MHZ | Sea Tel 9707 | 135385 (PCU Kit), 135344 (Level Cage Kit), 135381 (Replacement Power Supply Kit), 135350-1 (400MHz ADE Modem Kit), 135350-2 (400MHz BDE Modem Kit), 134932 (EL Motor Kit), 135551 (CL Motor Kit), 134940 (AZ Motor Kit), 135550 (LC Motor Kit), 135371 (2CH Rotary Joint Kit), 134877-2 (GPS Kit), 128545-1 (Belt Kit), 130392-1 (Pelican Case). |
| 138400 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL ST60, CIRCULAR | Sea Tel ST60 | 136613 (PCU Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 135371 (2CH Rotary Joint Kit), 134882 (GPS Kit), 136708 (EL Belt Kit), 135352 (CL Belt Kit), 130392-1 (Pelican Case). |
| 138401 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL ST60, LINEAR | Sea Tel ST60 | 136613 (PCU Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 135371 (2CH Rotary Joint Kit), 134882 (GPS Antenna Kit), 136708 (EL Belt kit), 135352 (CL Belt Kit), 135357 (POL Belt Kit), 134926 (POL Motor Kit), 134919 (POL Pot Kit), 130392-1 (Pelican Case). |
| 138402-2 | COMPREHENSIVE SPARE PARTS KIT, SCM, SAILOR 60 GX | Sailor 60 GX | 138416 (GICU PCB Kit), 138859 (GMXP PCB Kit), 135342 (Motion Platform PCB Kit), 138844 (MDE Kit, AZ Brake), 139779 (EL Motor Kit), 139778 (CL Motor Kit), 138420 (AZ Motor Kit), 134882 (GPS Kit), 138421 (Ka-Band LNB Kit), 138422 (5W Ka-Band BUC Kit), 139017 (SCM PCB Kit), 135371 (2-CH Rotary Joint Kit), 138419 (Pedestal Belt Kit), 130392-1 (Pelican Case). | |
| 138416 | REPLACEMENT GICU MAIN PCB KIT, SAILOR 60 GX | Sailor 60 GX | 137027-1 (GICU Main PCB), 117319-22 (Loctite 248), 137248 (Procedure). | |
| 138417 | REPLACEMENT POWER SUPPLY KIT, 300W, 24VDC, SAILOR 60 GX | Sailor 60 GX | 139395-2 (Power Supply, 300W), 117319-22 (Loctite 248), 139437 (Procedure). | |
| 138418 | REPLACEMENT AZIMUTH, ELEVATION & CROSS LEVEL BELT KIT, SAILOR 60 GX | SAILOR 60 GX | 123907-12537 (125 Groove Belt, Kevlar), 117319-4 (Loctite 242), 139565 (Procedure). | |
| 138419 | REPLACEMENT PEDESTAL BELTS KIT, SAILOR 60 GX | Sailor 60 GX | 123907-12537 (125 Groove Belt, Kevlar) x3, 117319-4 (Loctite 242), 139565 (Procedure). | |
| 138420 | REPLACEMENT AZIMUTH MOTOR KIT, SAILOR 60 GX | Sailor 60 GX | 137855-1 (AZ Motor Assembly), 133040-3 (Motor W/Encoder), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-4 (Loctite 242), 139424 (Procedure). | |
| 138421 | REPLACEMENT LNB KIT, KA-BAND, NJRC, SAILOR 60 GX | Sailor 60 GX | 138027-1 (Ka-Band LNB), 139426 (Procedure). | |
| 138422 | REPLACEMENT BUC KIT, KA-BAND, 5W, NJRC, SAILOR 60 GX | Sailor 60 GX | 138025-1 (5W BUC, Ka-Band), 117319-30 (Loctite 2760), 139425 (Procedure). | |
| 138480 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL USAT30, W/BRAKES | Sea Tel USAT30 | 138256 (PCU W/Brakes Kit), |
| 138481 |  |
REPLACEMENT PCU KIT, SEA TEL 5004UA | Sea Tel 5004UA | 122203-2 (Replacement PCU Kit, XX04, UA), 117319-4 (Loctite 242), 135278 (Procedure). |
| 138688 |  |
REPLACEMENT POL ENCODER KIT, SEA TEL 4012 | Sea Tel 4012 | 138437-1 (Pol Encoder Assembly), 117319-4 (Loctite 242), 139459 (Procedure). |
| 138689 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 4012, POL ENCODER | Sea Tel 4012 | 136740 (ICU Kit), 135347 (MDE Kit), 136738 (MXP PCB Kit), 136739 (MXP Power Supply Kit), 138688 (Pol Encoder Kit), 136742 (Pol Motor Kit), 134882 (GPS Antenna Kit), 135371 (2-CH Rotary Joint Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 136708 (EL Belt Kit), 135352 (CL Belt Kit), 135353 (AZ Drive Chain Kit), 130392-1 (Pelican Case). |
| 138844 |  |
REPLACEMENT MDE KIT, AZ BRAKE, SEA TEL 4010W-53 | Sea Tel 4010 | 131227-2 (MDE Assembly), 117319-4 (Loctite 242), 135271 (Procedure). |
| 138846 |  |
REPLACEMENT PCU ASSEMBLY KIT, SEA TEL 4010W-53 | Sea Tel 4010 | 133246-3 (PCU Assembly, 4010W-53), 117319-4 (Loctite 242), 136614 (Procedure). |
| 138848 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 4010W-53 | Sea Tel 4010 | 124108-2 (Pol Motor Kit), 124109-2 (Pol Pot Kit), 135371 (2-CH Rotary Joint Kit), 138844 (MDE Kit, AZ Brake), 135350-2 (BDE 400MHz Modem Kit), 138845 (Belt Kit), 134882 (GPS Kit), 138846 (PCU Kit), 134930 (EL/CL Motor Kit), 130776-2 (AZ Motor Kit), 130391-31 (Forged M6 Eye Nut), 123950-1 (Cross level Support), 130392-1 (Pelican Case). |
| 138859 | REPLACEMENT GMXP MAIN PCB KIT, SAILOR 60 GX | Sailor 60 GX | 137037-1 (GMXP PCB Assembly), 117319-22 (Loctite 248), 139422 (Procedure). | |
| 139016 | REPLACEMENT ICM ENCLOSURE KIT, ST, DUAL FAN, SAILOR 60 GX | Sailor 60 GX | ||
| 139017 | REPLACEMENT STANDARD CORE MODULE PCB KIT, SAILOR 60 GX | Sailor 60 GX | 136790-1 (Satellite Core Module PCB, 1GB CX 751), 117319-22 (Loctite 248), 139427 (Procedure). | |
| 139050-1 | BUC UPGRADE KIT, 8W to 16W, CODAN MINI, KU, SEA TEL XX12, 4009 MK3 | Sea Tel 4009 MK3, Sea Tel 4012, Sea Tel 5012, Sea Tel 6012 C, Sea Tel 6012 KU | 129741-32 (Harness 400MHz to SSPB, 32 | |
| 139334 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 6012-71 | Sea Tel 6012 C | 136740 (ICU Assembly Kit), 135347 (MDE Kit), 136738 (MXP PCB Kit), 134919 (Pol Pot Kit), 134926 (Pol Motor Kit), 135371 (Rotary Joint Kit), 134882 (GPS Kit), 134930 (EL/CL Motor Kit), 134938 (AZ Motor Kit), 136708 (EL Belt Kit), 135352 (CL Belt Kit), 135357 (Pol Belt Kit), 130392-1 (Pelican Case). |
| 139430 | REPLACEMENT BUC KIT, KU, 16W, CODAN MINI BUC FULL-BAND | Sea Tel 4009 MK3 | 132345-4 ( SSPB, KU, 16W, Codan Mini BUC, Full-Band), 117319-4 (Loctite 242), 136502 (Procedure). | |
| 139432 | REPLACEMENT GICU ASSEMBLY KIT, SAILOR 60 GX | Sailor 60 GX | 138923-1 (GICU Assembly, GX60), 117319-30 (Loctite 2760), 139443 (Procedure). | |
| 139445 | REPLACEMENT PROXIMITY SENSOR KIT, SAILOR 60GX, SEA TEL 3011, XX09, XX10, XX12, ST60 | Sailor 60GX, Sea Tel 3011, Sea Tel 4009, Sea Tel 4009 MK3, Sea Tel 4010, Sea Tel 4012, Sea Tel 5004UA, Sea Tel 5009, Sea Tel 5010, Sea Tel 5012, Sea Tel 6009 C, Sea Tel 6009 KU, Sea Tel 6012 C, Sea Tel 6012 KU, Sea Tel ST60 | 129543-24 (Proximity Sensor, 24 | |
| 139447 | REPLACEMENT POWER RING KIT, SAILOR 60 GX | Sailor 60 GX | 139092-1 (Power Ring, 20A), 117319-4 (Loctite 242), 139448 (Procedure). | |
| 139455 | REPLACEMENT WIRE ROPE ISOLATOR KIT, SAILOR 60 GX | Sailor 60 GX | 115132-16 (Wire Rope Isolator) x4, 117319-30 (Loctite 2760), 139459 (Procedure). | |
| 139649 | ENHANCEMENT KIT, POL ENCODER, SEA TEL 4012 | Sea Tel 4012 | 138437-1 (Encoder Ass'y 4012), 135194-1 (Motor Termination PCB), 138328-8 (Encoder to Motor Harness), 117319-4 (Loctite 242), XXXXXX (Procedure). | |
| 139733-1 | REPLACEMENT HEATER KIT, 115VAC, SAILOR 60 GX | Sailor 60 GX | ||
| 139733-2 | REPLACEMENT HEATER KIT, 220VAC, SAILOR 60 GX | Sailor 60 GX | ||
| 139776 |  |
REPLACEMENT AZIMUTH MOTOR KIT, W/ENCODER, W/BRAKE, SEA TEL 4010W-53 | Sea Tel 4010 | 133040 (AZ Motor W/Brake, W/Encoder), 115467-2 (Pulley), 114590-188 (Set Screw) X2, 117319-4 (Loctite 242), 117319-27 (Loctite 638 ), 117319-30 (Loctite 2760), 139777 (procedure). |
| 139778 | REPLACEMENT CROSS LEVEL MOTOR KIT, SAILOR 60 GX | Sailor 60 GX | 139782-1 (CL Motor Assembly), 125644-1 (Motor, W/Brake), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-4 (Loctite 242), 139780 (Procedure). | |
| 139779 | REPLACEMENT ELEVATION MOTOR KIT, SAILOR 60 GX | Sailor 60 GX | 137840-1 (EL Motor Assembly), 125644-1 (Motor W/Brake), 114079-2 (Pulley), 114590-142 (Set Screw), 117319-4 (Loctite 242), 139781 (Procedure). | |
| 139927 | COMPREHENSIVE SPARE PARTS KIT, SEA TEL 6011 | Sea Tel 6011 | 136613 (PCU Ass'y Kit), 135347 (MDE Kit), 135350-2 (BDE Modem Kit), 134938 (AZ Motor Kit), 134930 (EL/CL Motor Kit), 135545 (4CH Rotary Joint Kit), 134882 (GPS Kit), 136708 (EL Belt Kit), 135352 (CL Belt Kit), 124108-2 (Pol Motor Kit), | |
| 140039 | REPLACEMENT LNB KIT, C-BAND, DRO, 8225RN, N-TYPE | Sea Tel ST60, Sea Tel 6011 | 134164-2 (LNB C-Band, DRO, 8225RF), 135294 (Procedure). | |
| 140354-2 |  |
REPLACEMENT BUC KIT, KU, 8W, CODAN MINI BUC FULL-BAND, ENET | Sea Tel 3011, Sea Tel 4012, Sea Tel 5012 | 132345-2 (8W Codan Mini BUC, Ku, Full-Band, W/ENET), 117319-4 (Loctite 242), 136502 (Procedure). |
| 140354-4 |  |
REPLACEMENT BUC KIT, KU, 16W, CODAN MINI BUC FULL-BAND, ENET | Sea Tel 3011, Sea Tel 4009, Sea Tel 4012, Sea Tel 5012, Sea Tel 4009 MK3 | 132345-4 (16W Codan Mini BUC, Ku, Full-Band, W/ENET), 117319-4 (Loctite 242), 136502 (Procedure). |
| 141364-1 |  |
COMPREHENSIVE SPARE PARTS KIT, SEA TEL 9711 IMA | Sea Tel 9711 IMA | 136740 (ICU Assembly Kit), 135347 (MDE Kit), 135371 (Rotary Joint Kit), 134882 (GPS Kit), 136738 (MXP PCB Kit), 136739 (MXP PSU Kit), 134932 (EL Motor Kit), 135551 (CL Motor Kit), 134940 (AZ Motor Kit), 135407 (EL Belt Kit), 135532 (CL Belt Kit), 135534 (AZ Drive Chain Kit), 130392-1 (Pelican Case). |
